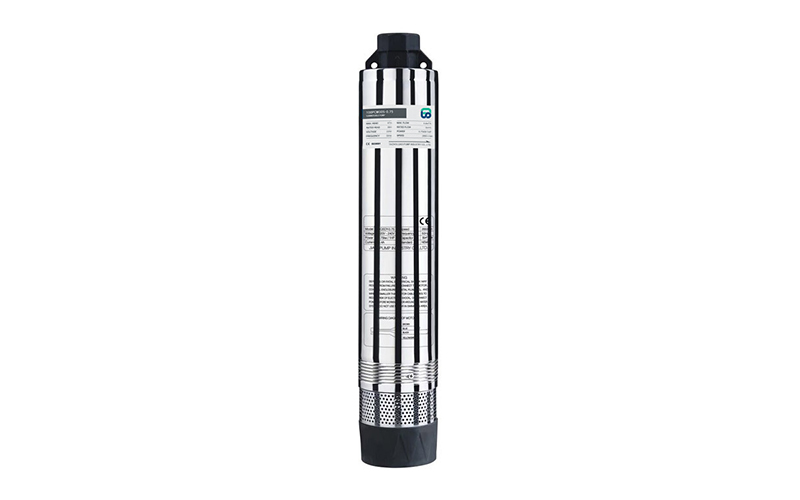

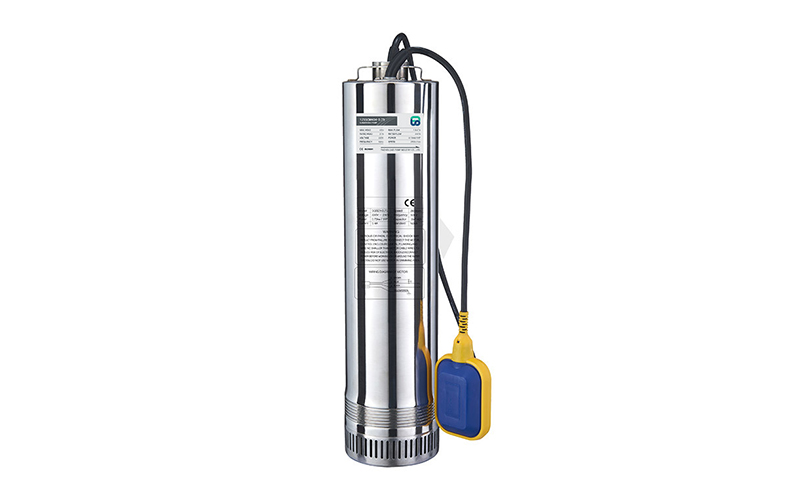

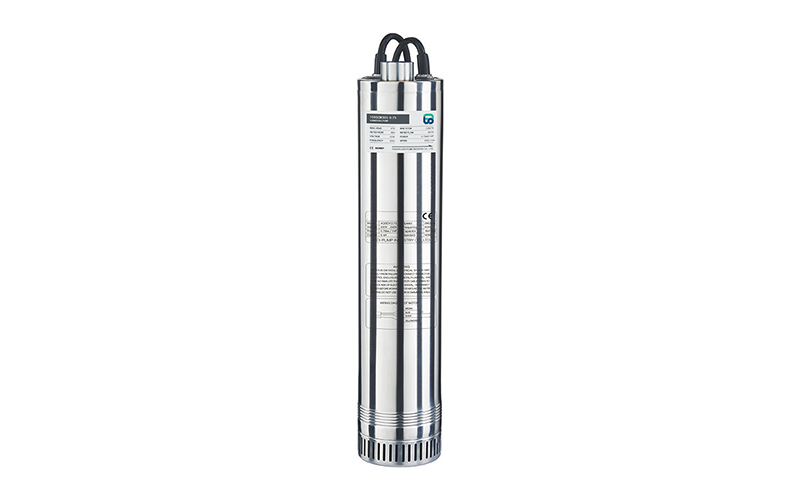

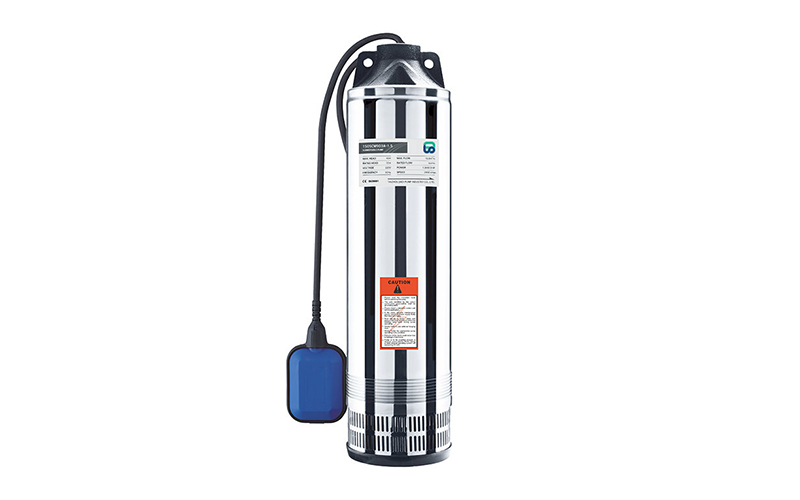

Well Water Submersible Pump SC
- Sumbersible deep well pump with plastic/SS impeller
- Maximum fluid temperature up to +35°C
- Maximum sand content: 0.15%
- Minimum well diameter:Φ130mm
- Rewindable motor
- Equip with start control box or digital auto-control box
- For water supply from wells or reservoirs
- For domestic use, for civil and industrial applications
- For garden use and irrigation

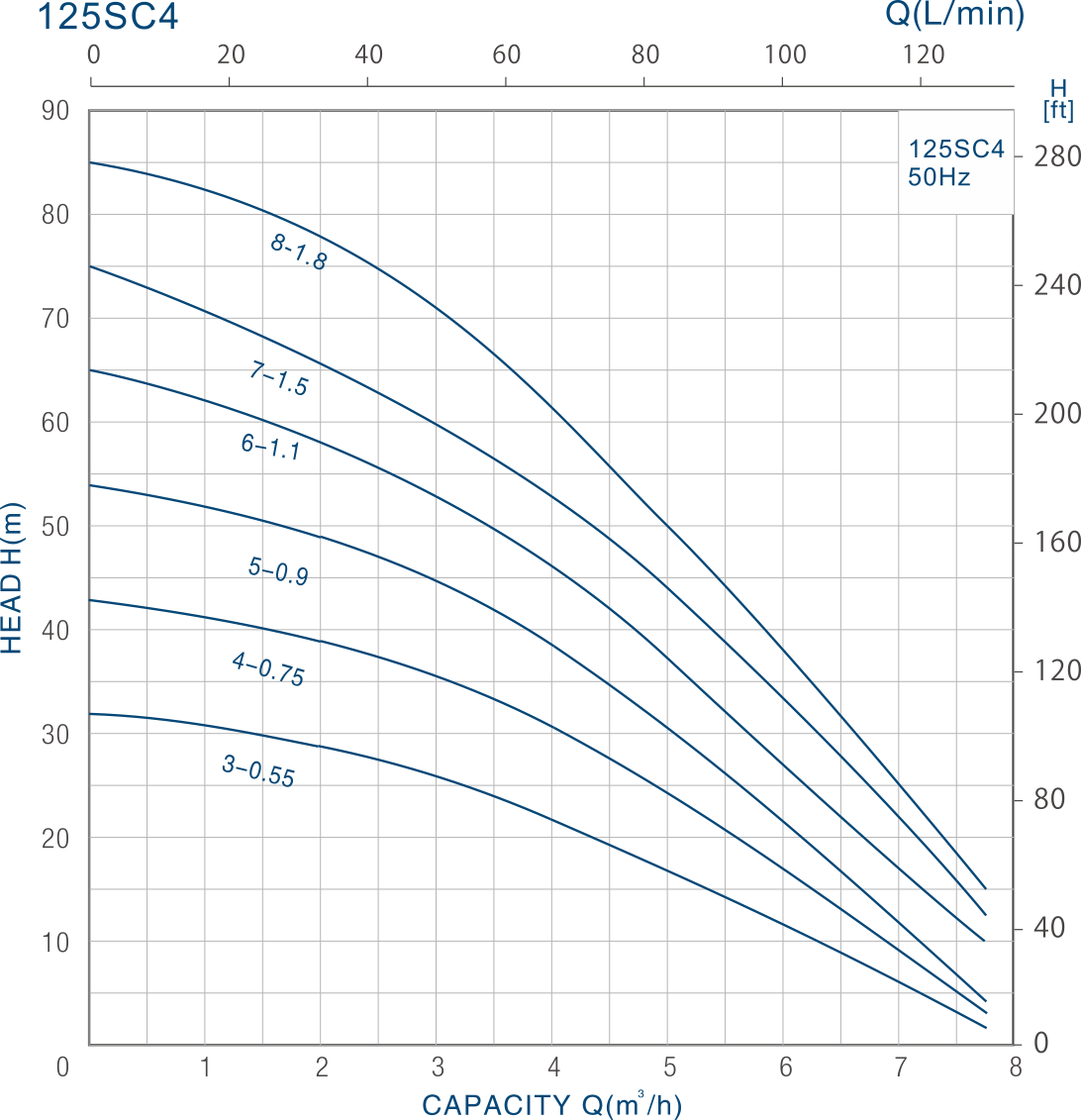

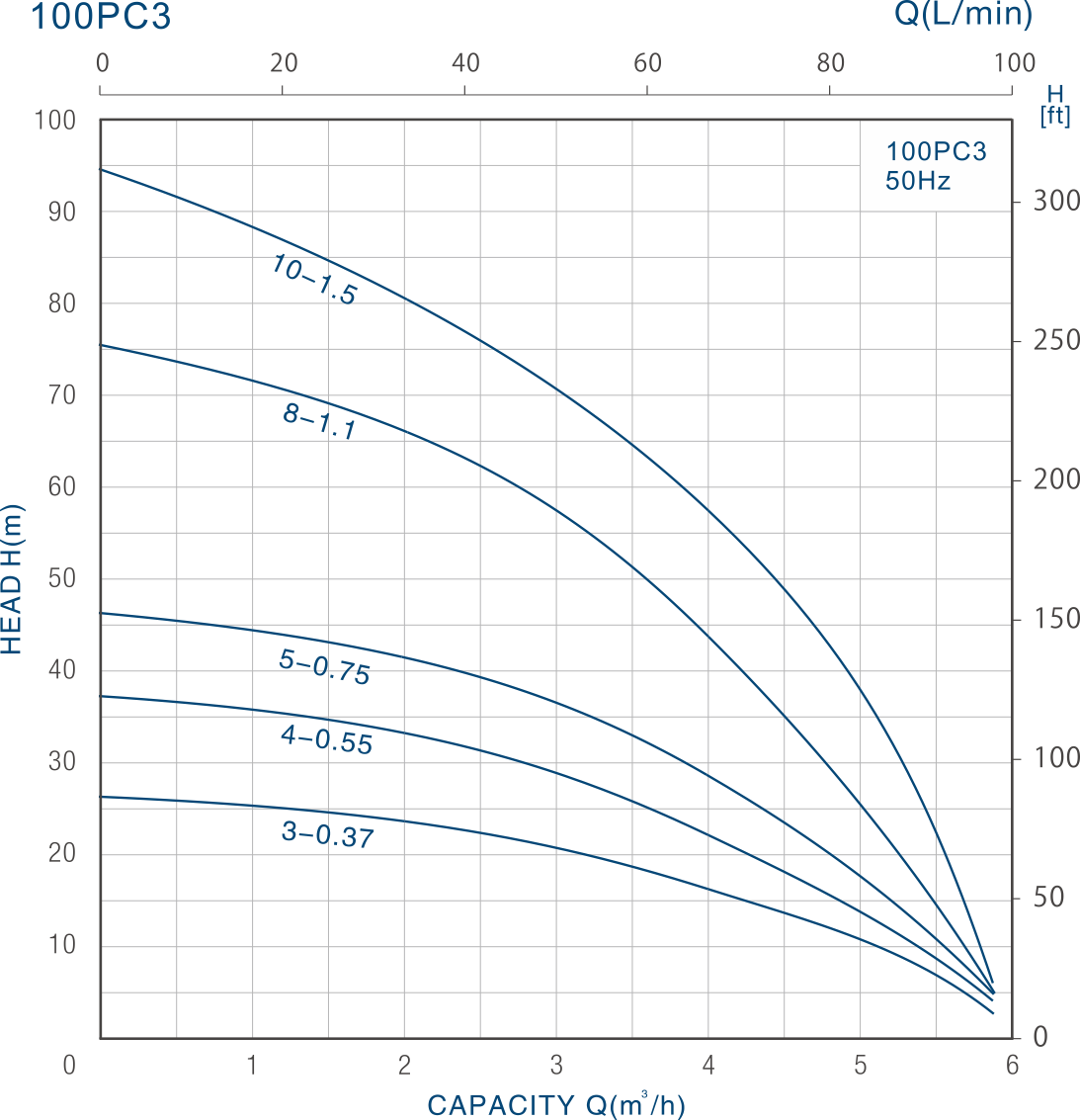

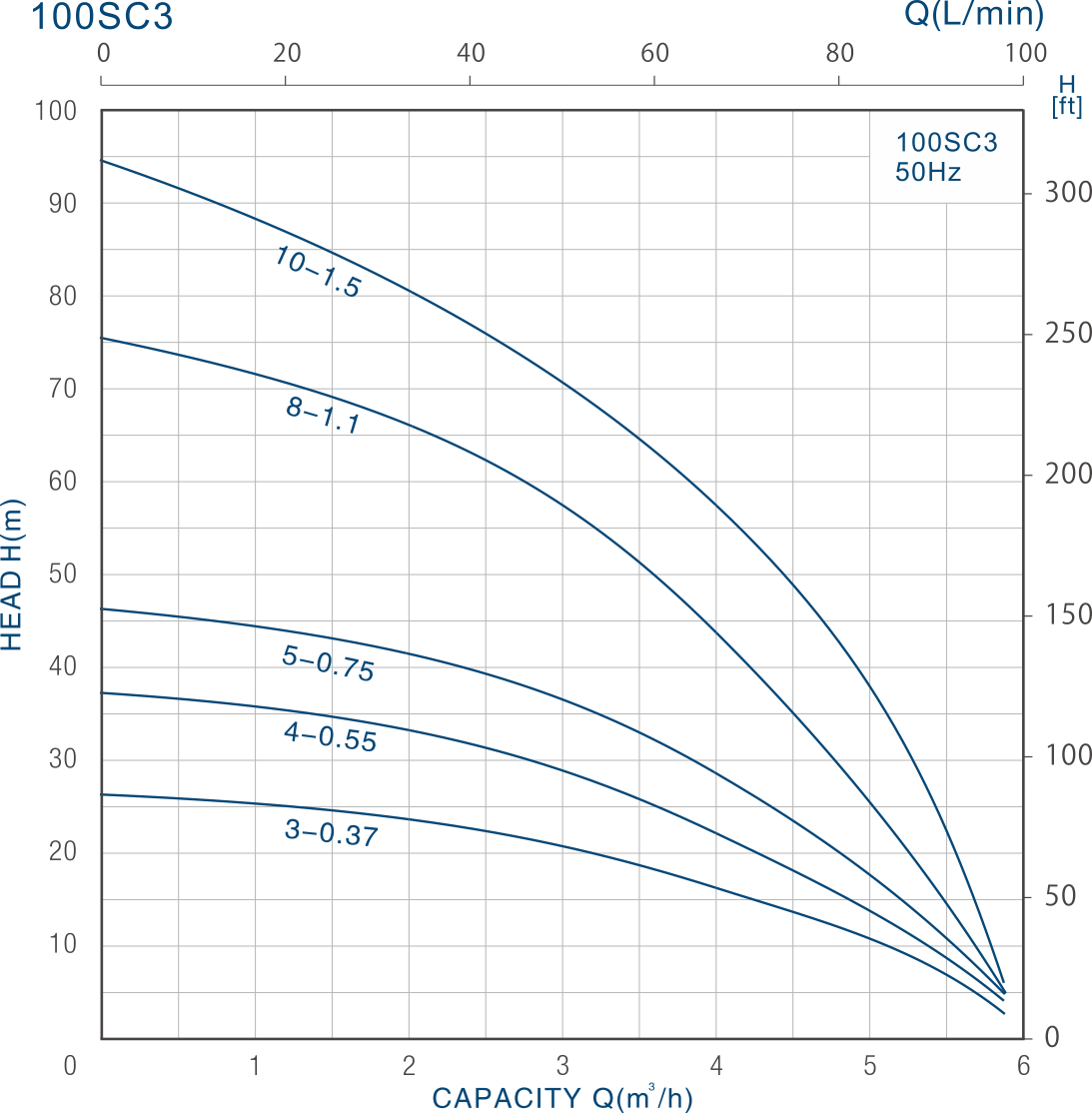

PUMP CURVE

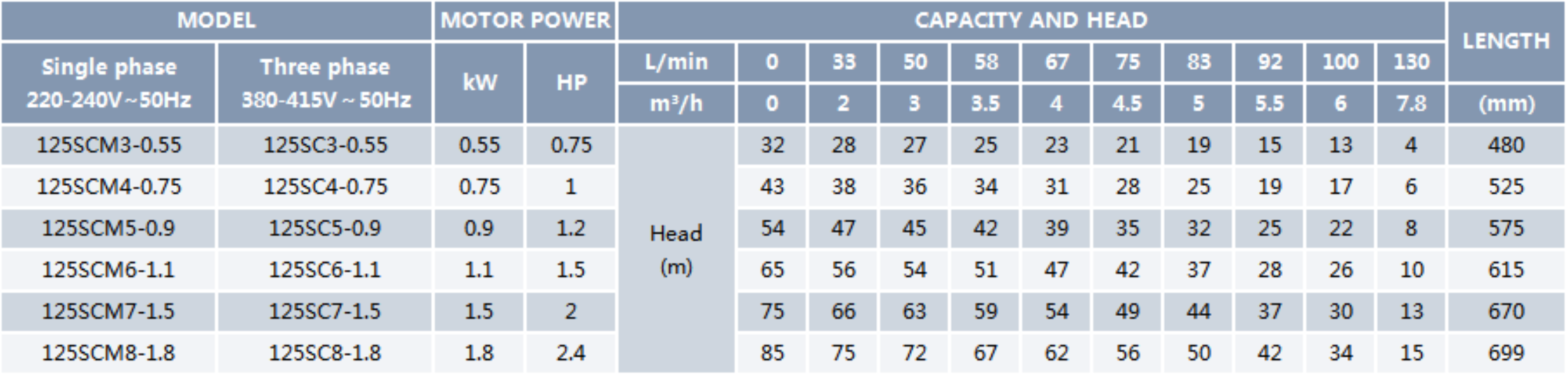

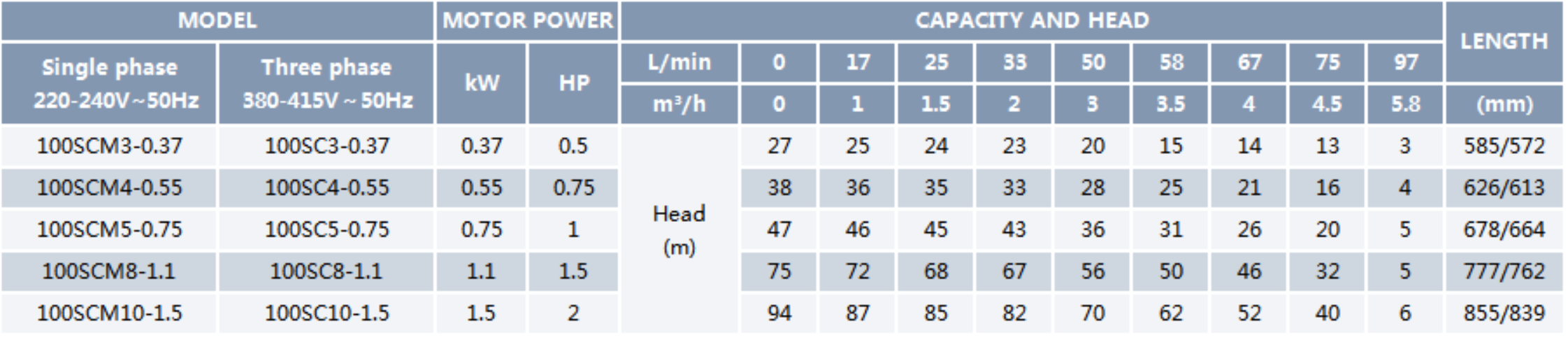

PERFORMANCETABLE:rpm:2850,0utlet:G1"

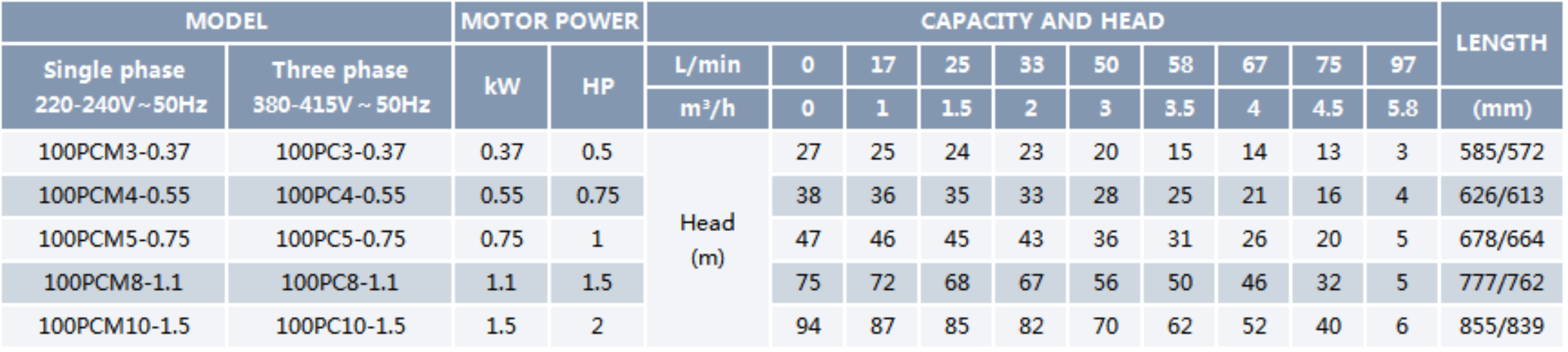

PERFORMANCE TABLE:rpm:2850,Outlet:G1 1/4"
PERFORMANCE TABLE:rpm:2850,Outlet:G1 1/4"
