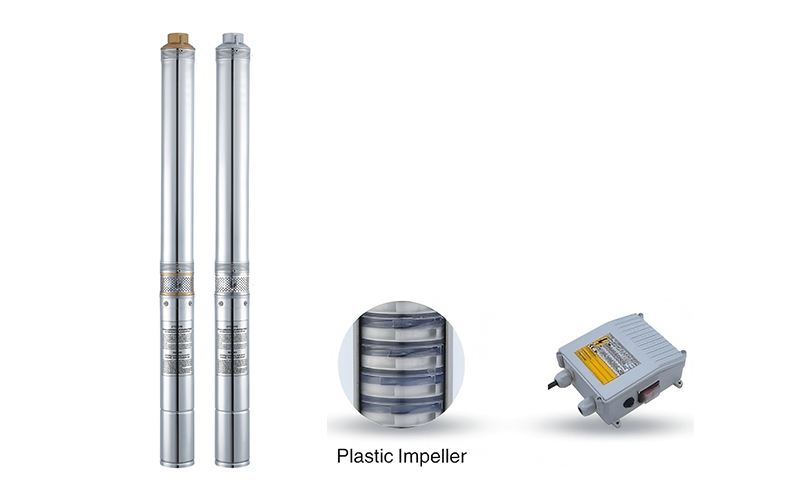

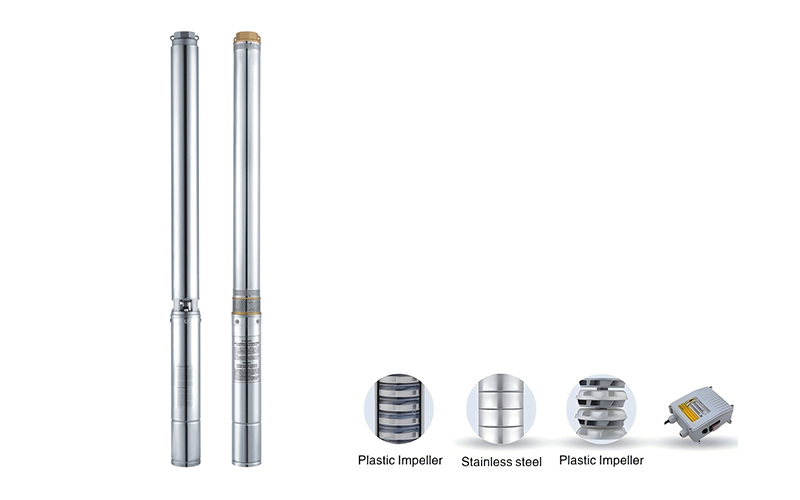

Deep Well Pump SD

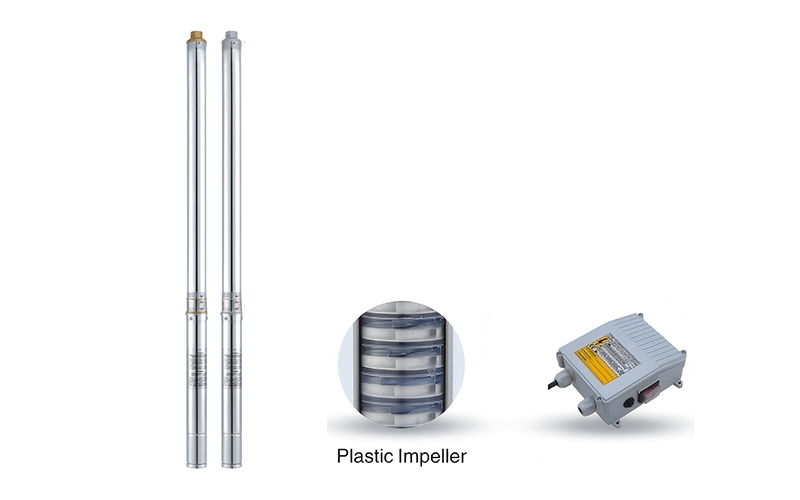

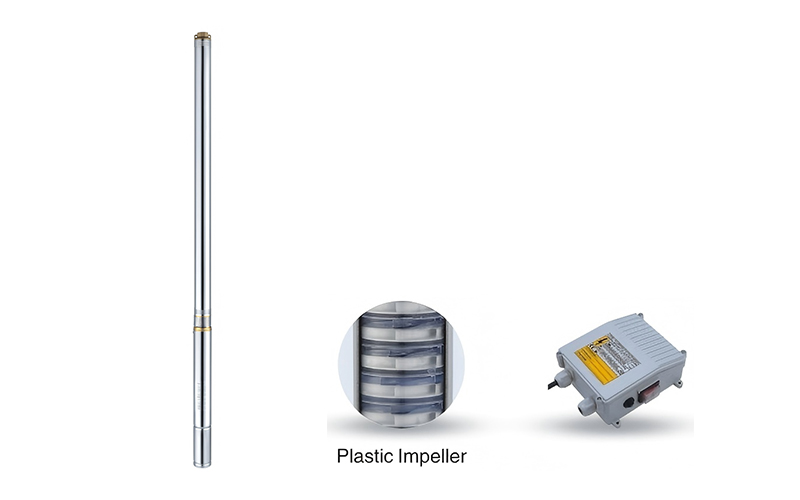

- Sumbersible deep well pump with plastic impeller
- Maximum fluid temperature up to +35°C
- Maximum sand content: 0.25%
- Rewindable motor
- Equip with start control box or digital auto-control box
- For water supply from wells or reservoirs
- For domestic use, for civil and industrial applications
- For garden use and irrigation

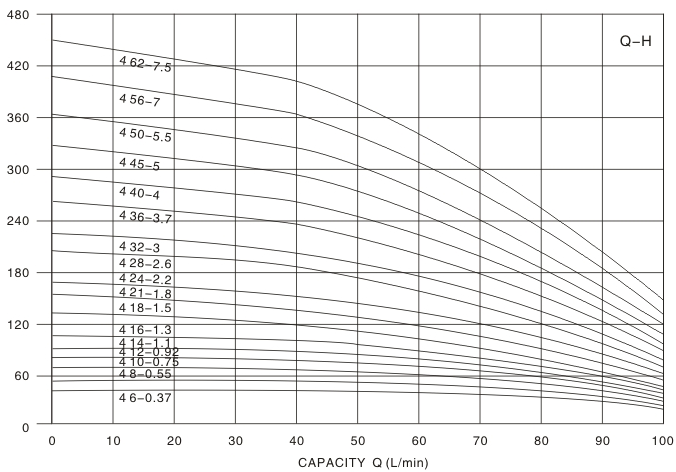

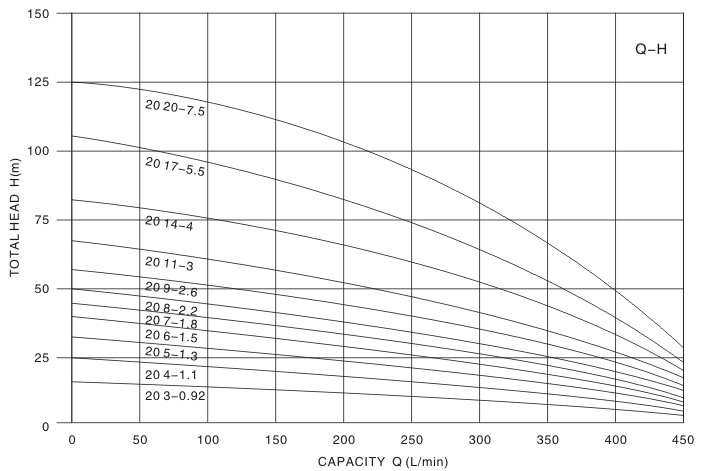

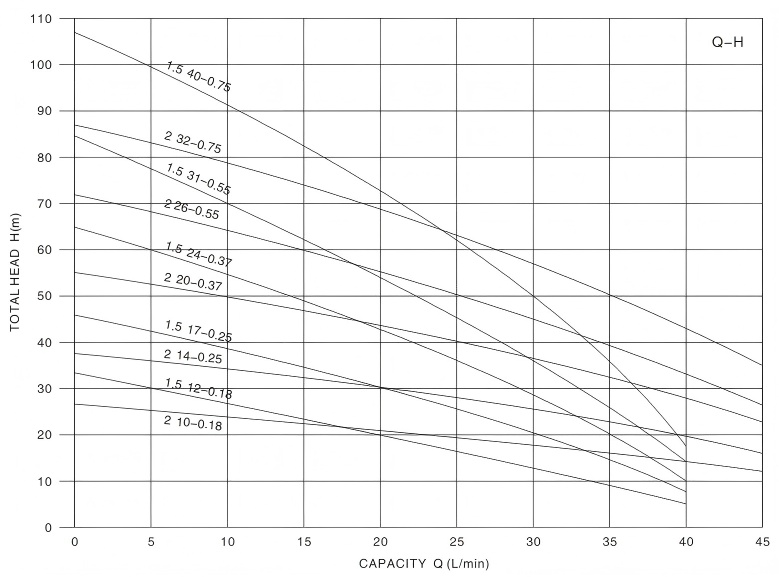

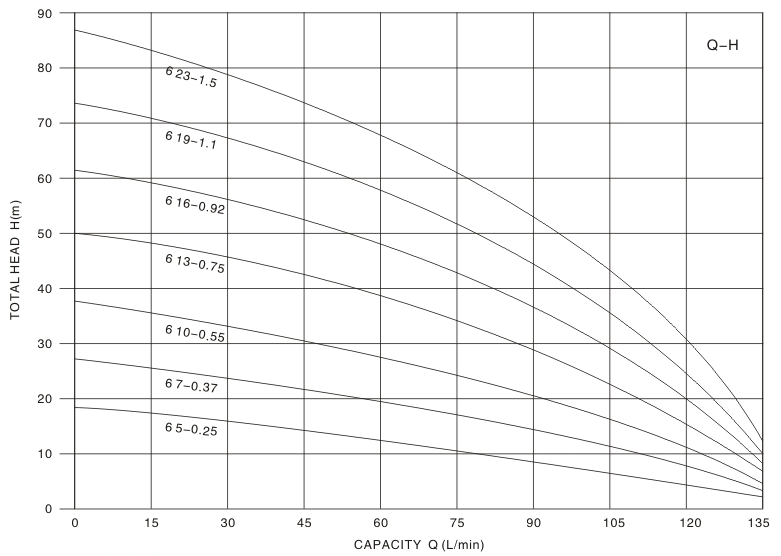

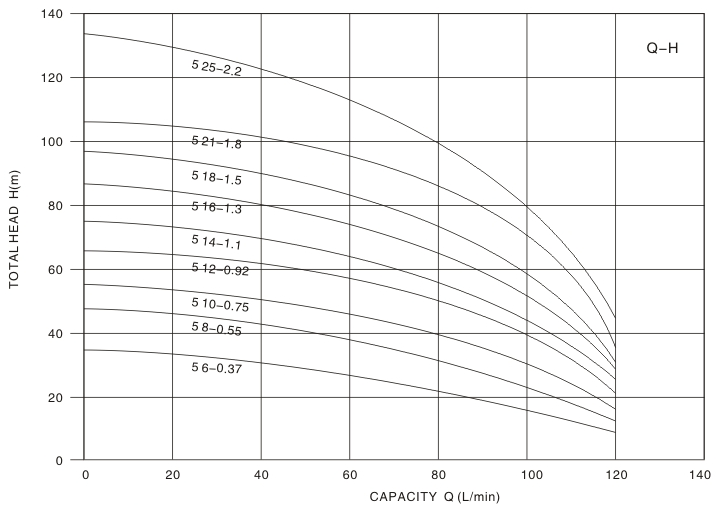

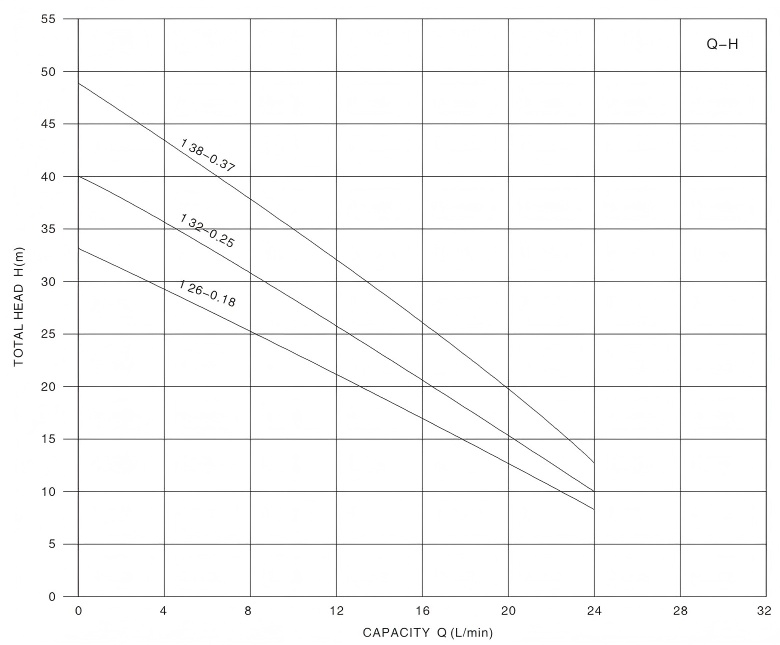

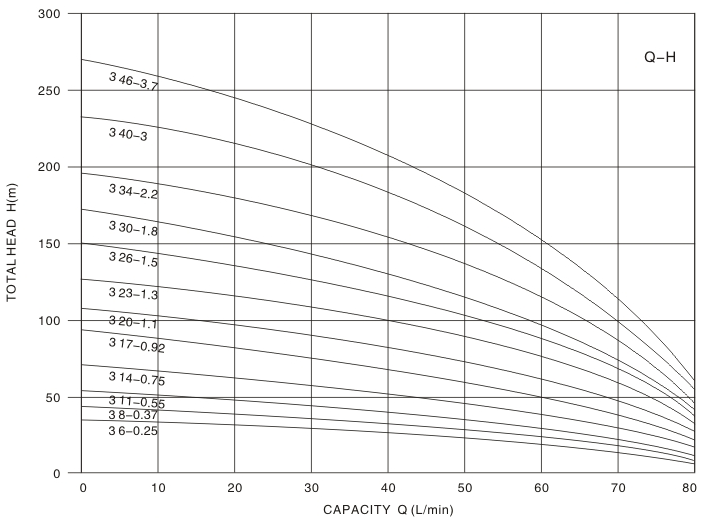

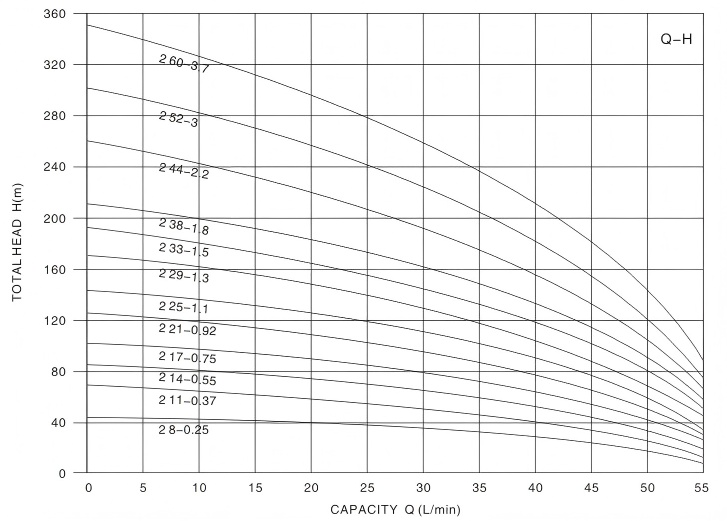

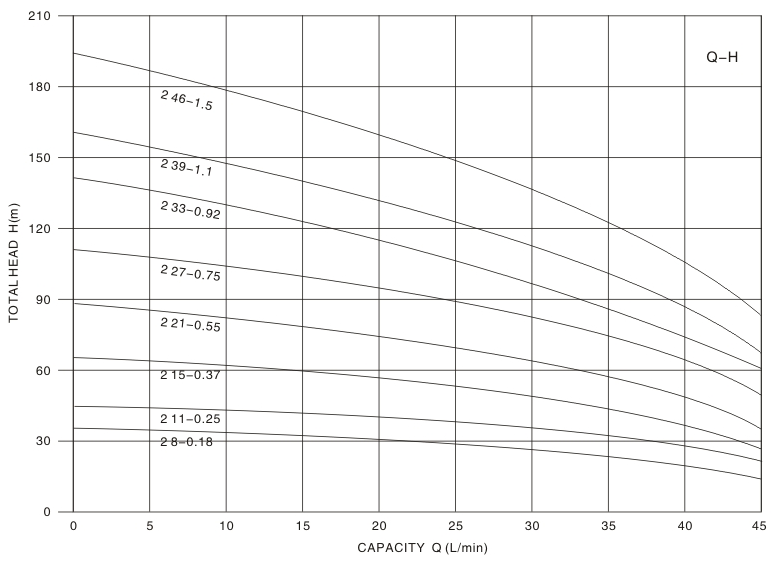

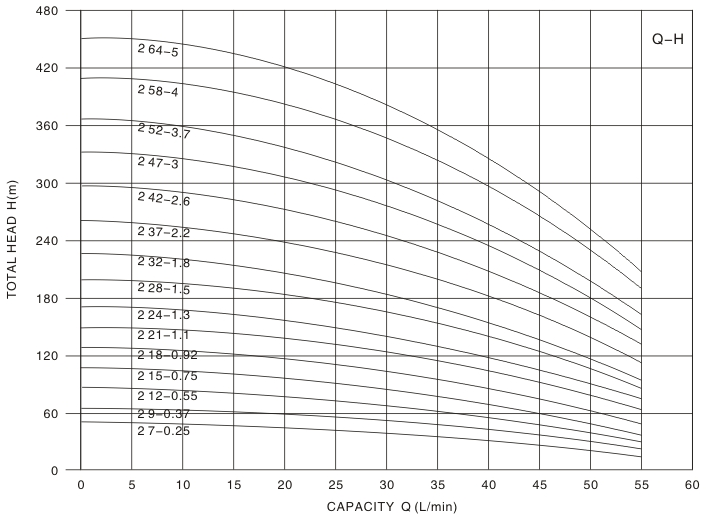

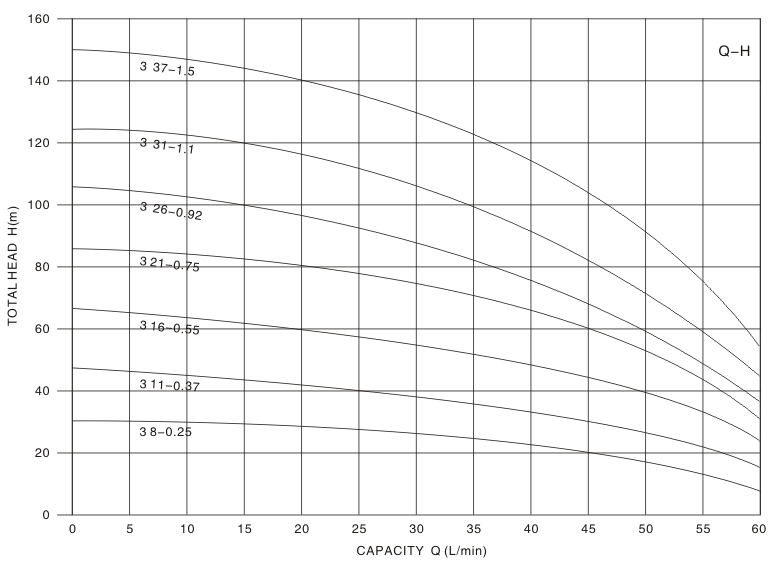

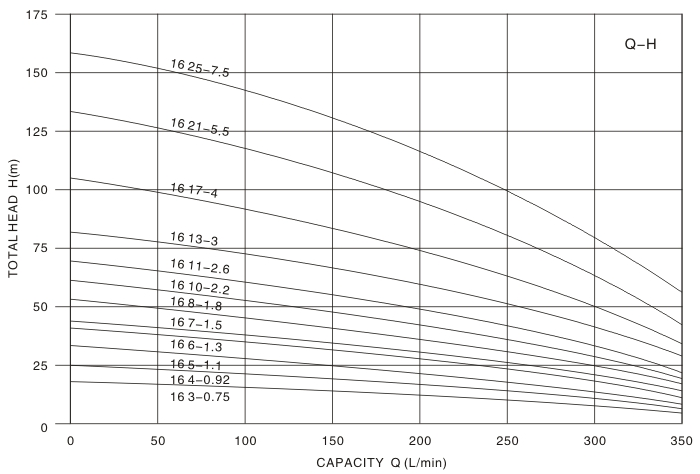

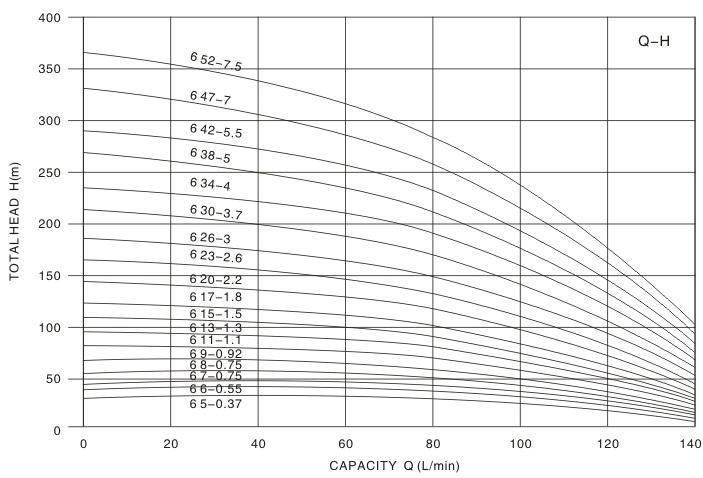

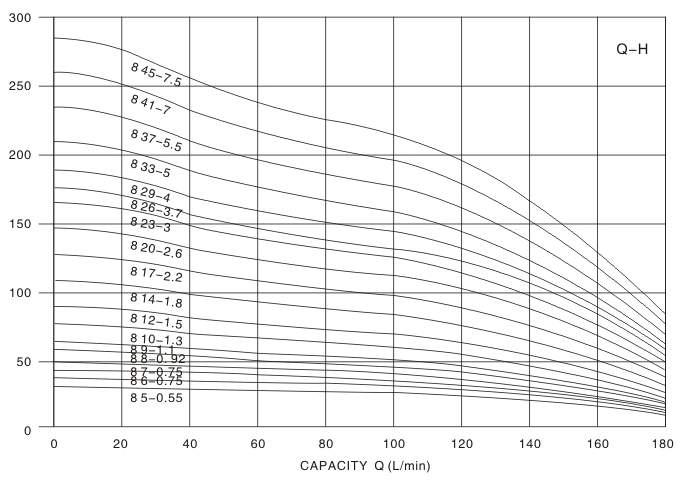

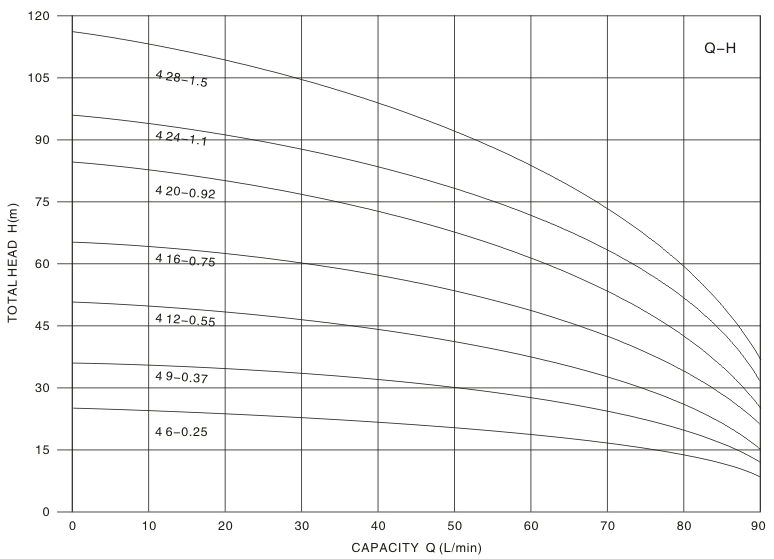

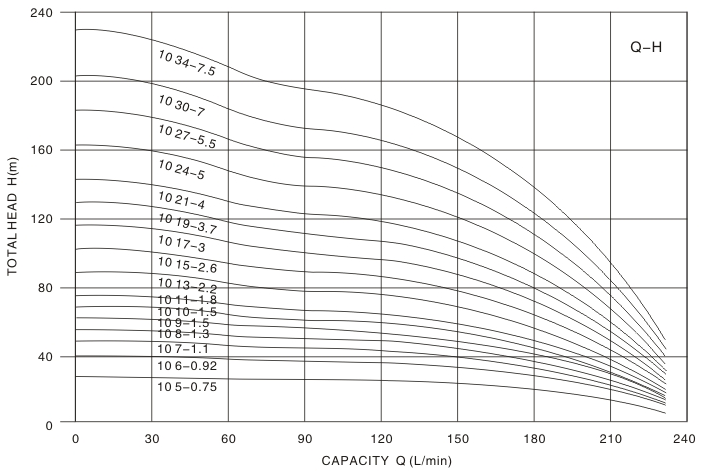

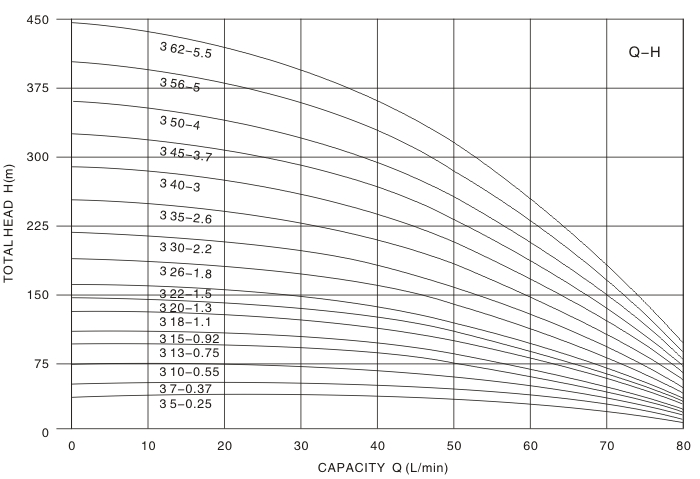

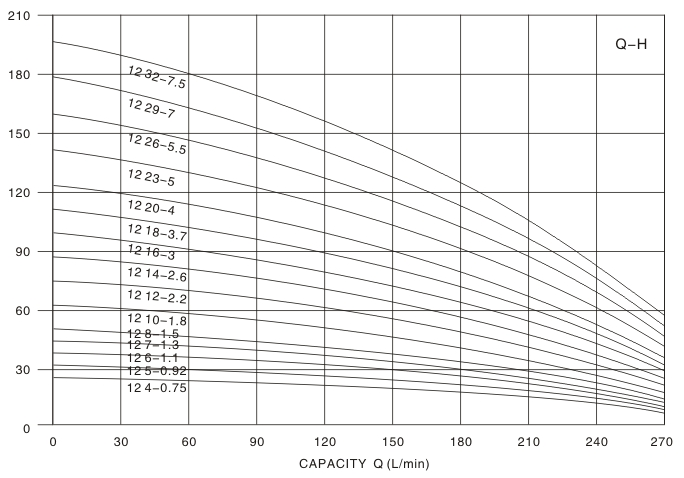

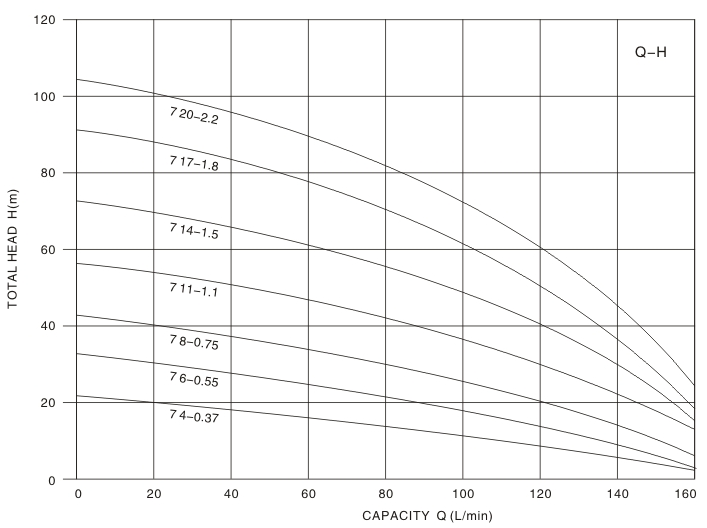

PUMP CURVE

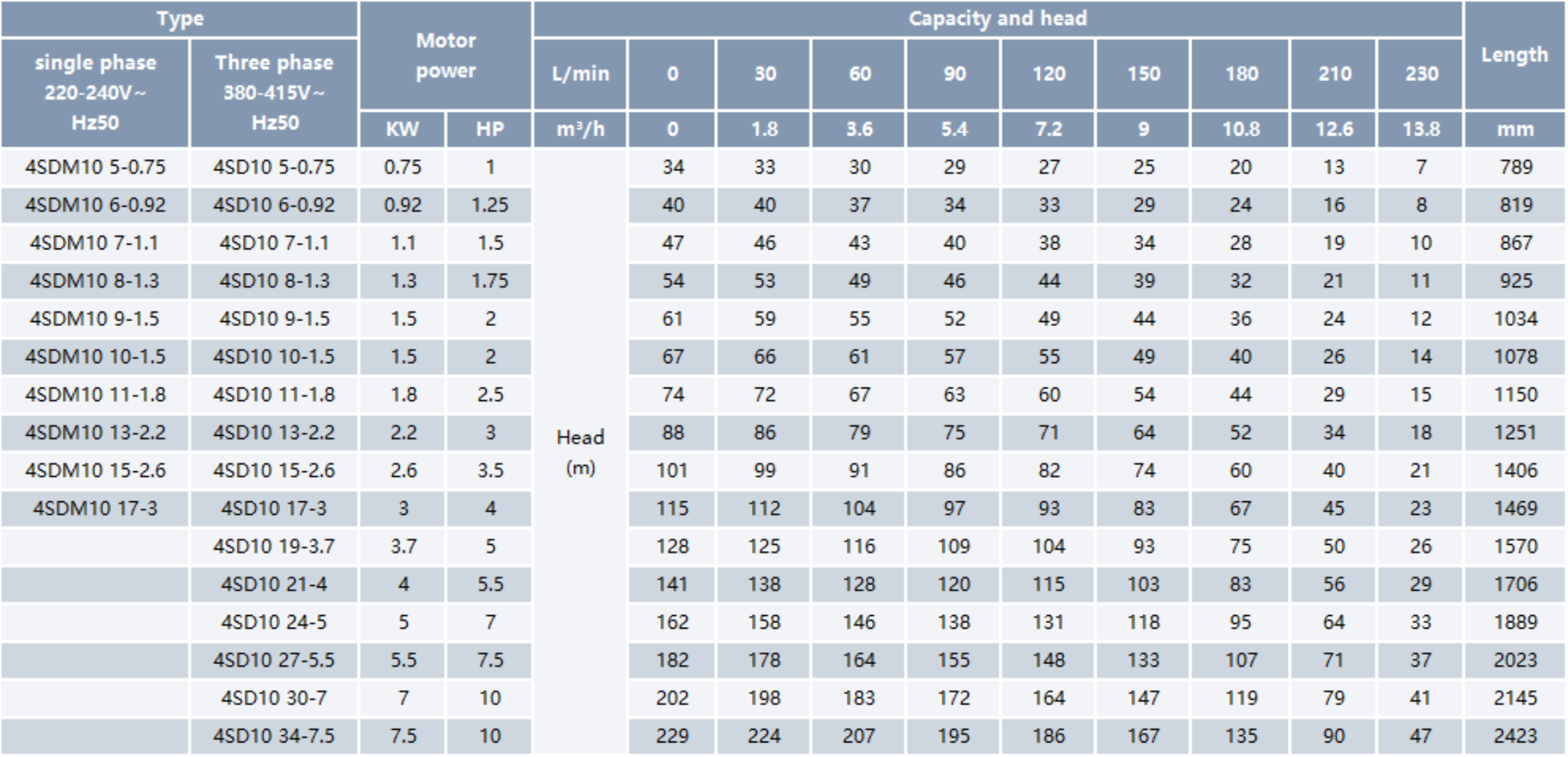

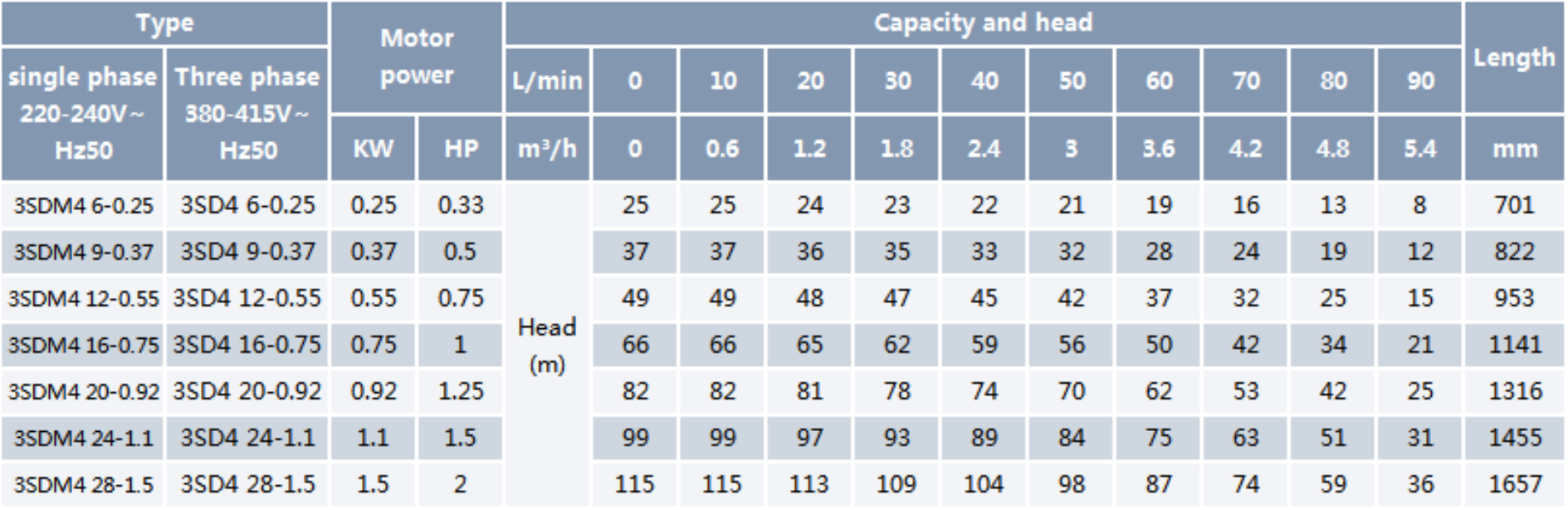

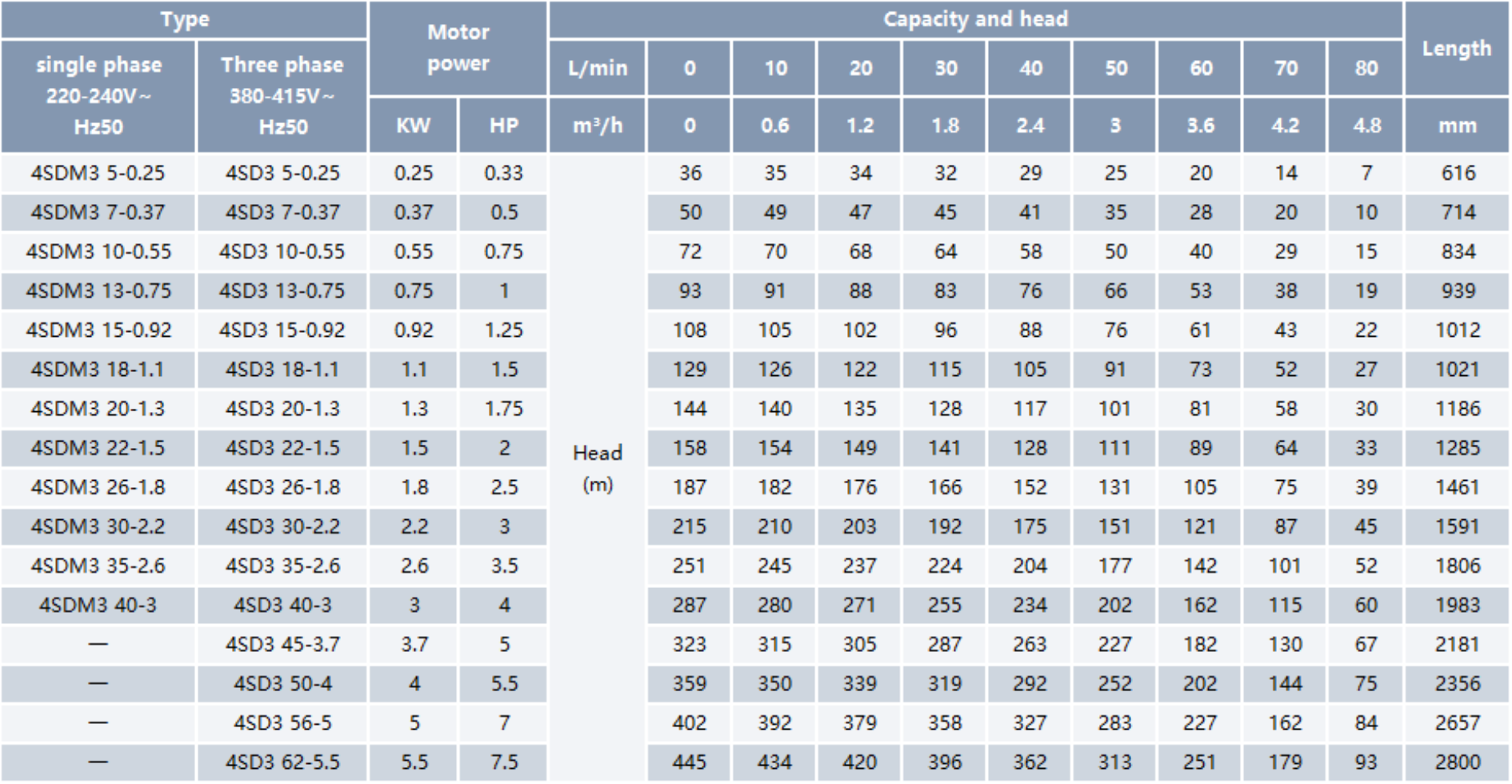

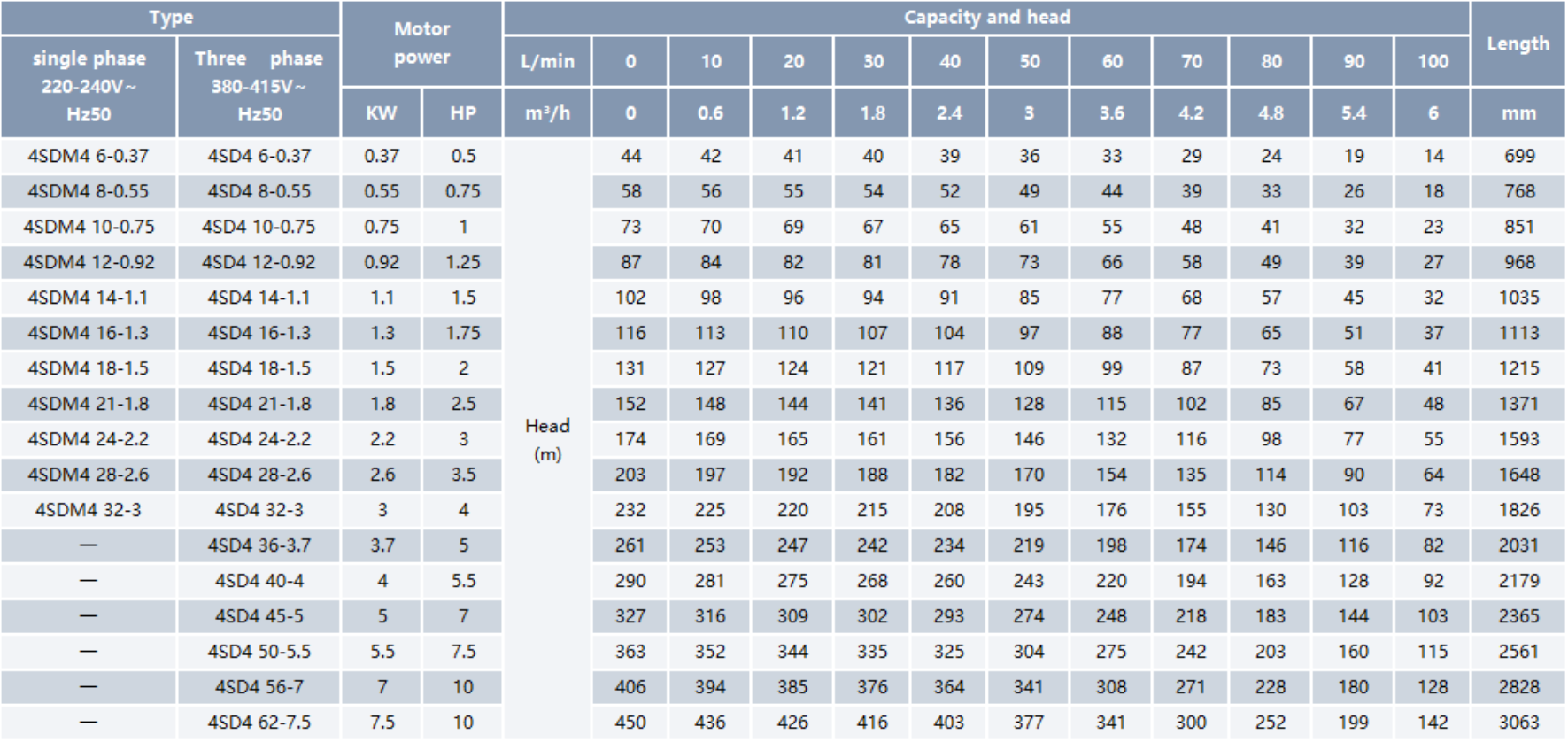

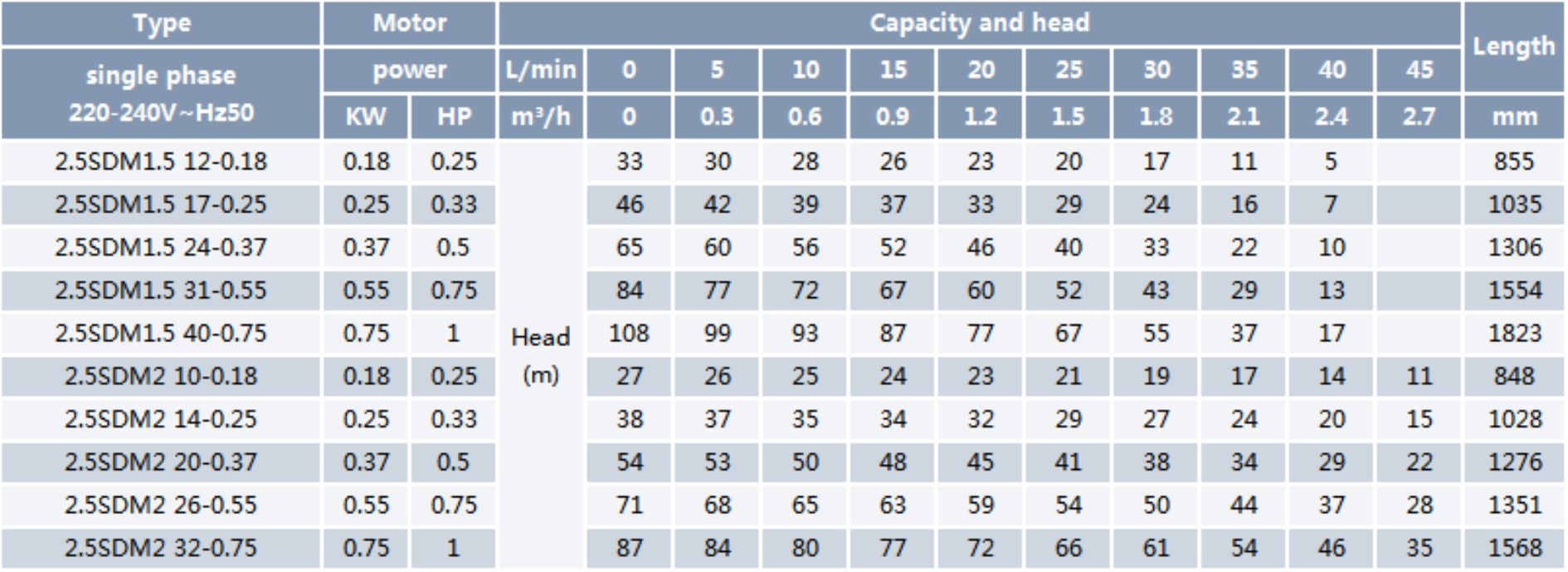

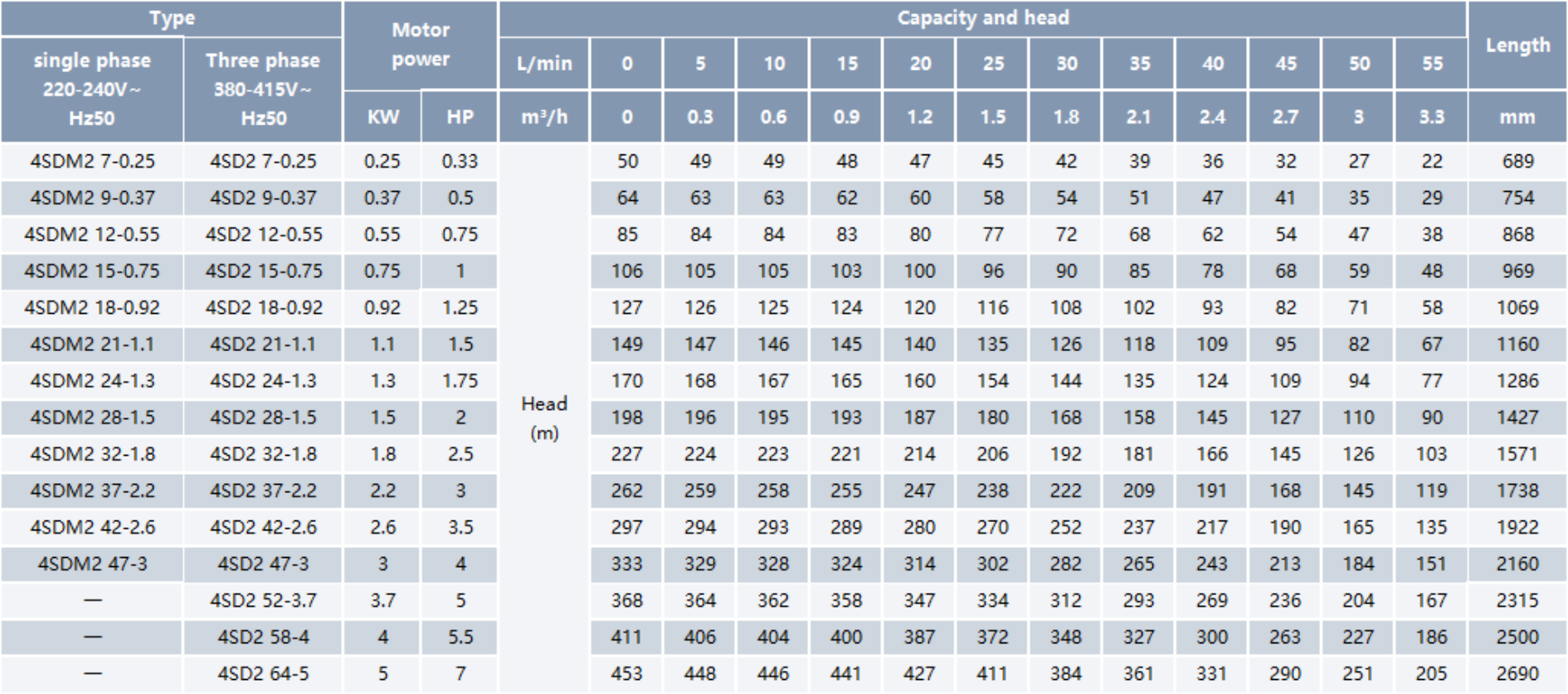

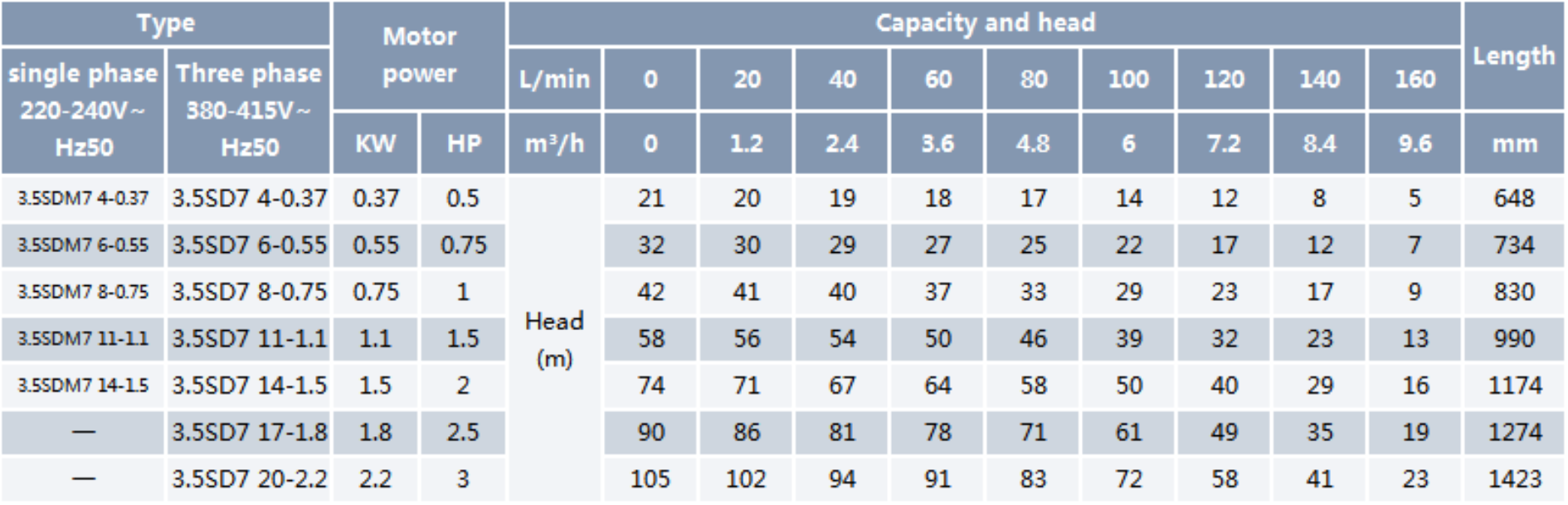

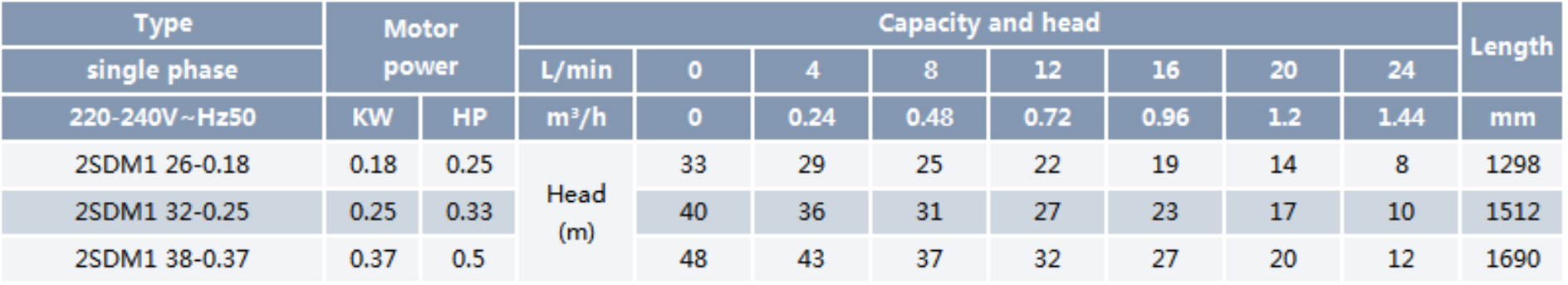

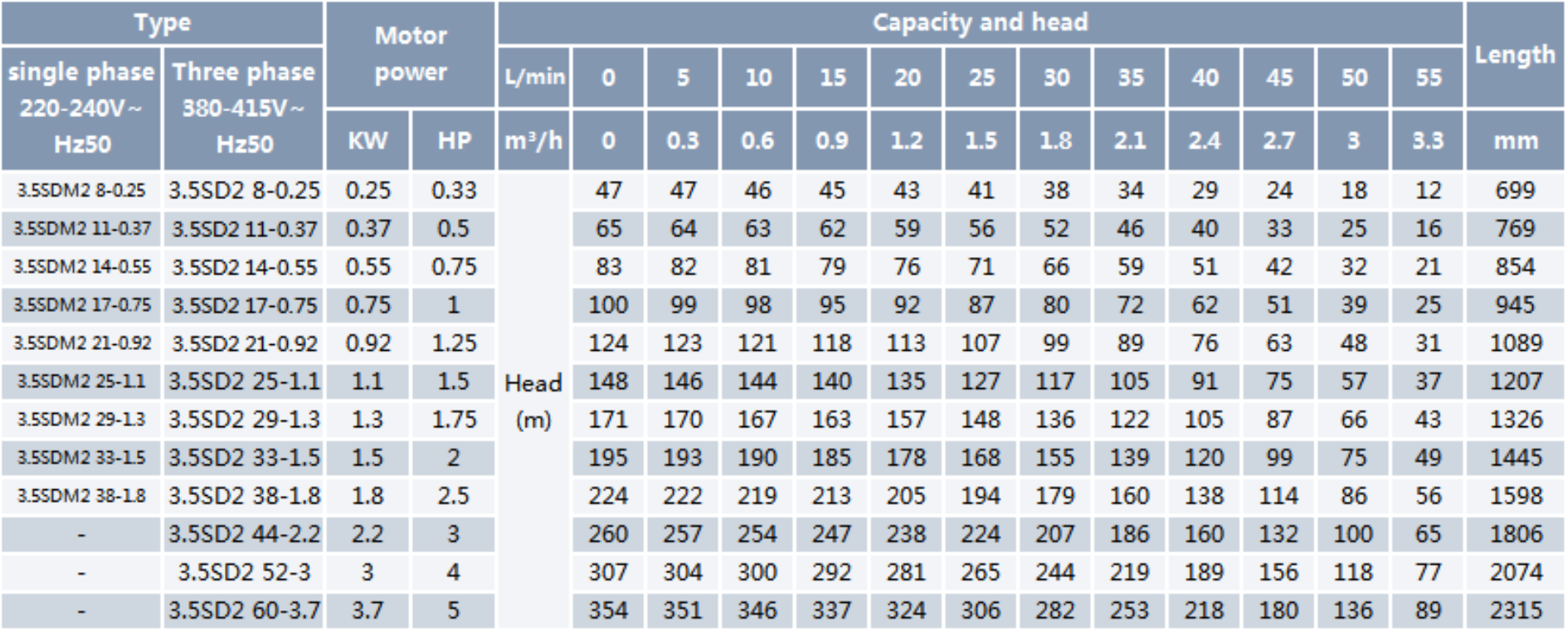

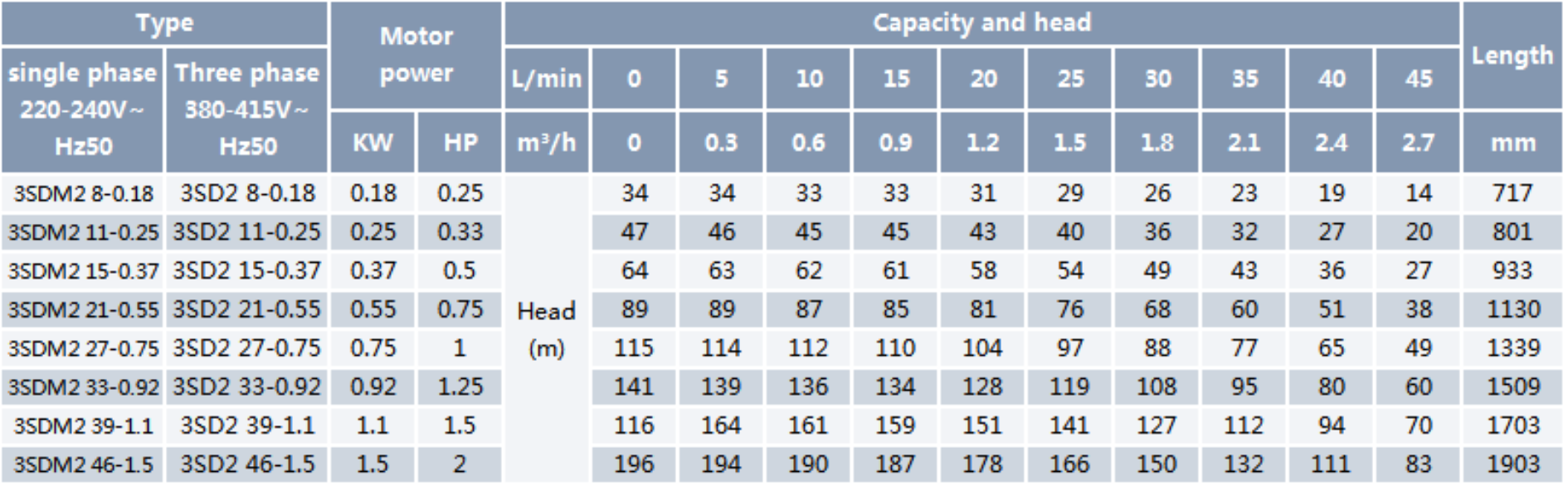

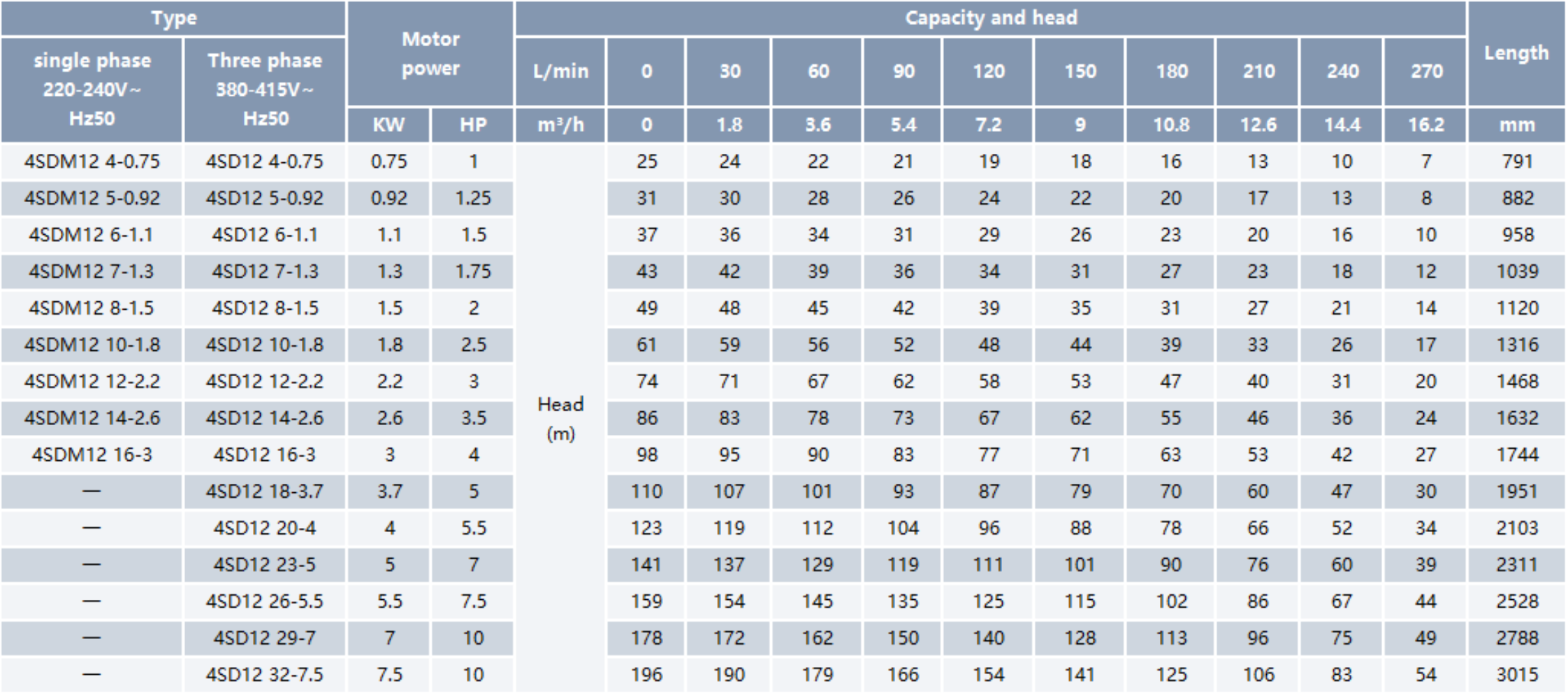

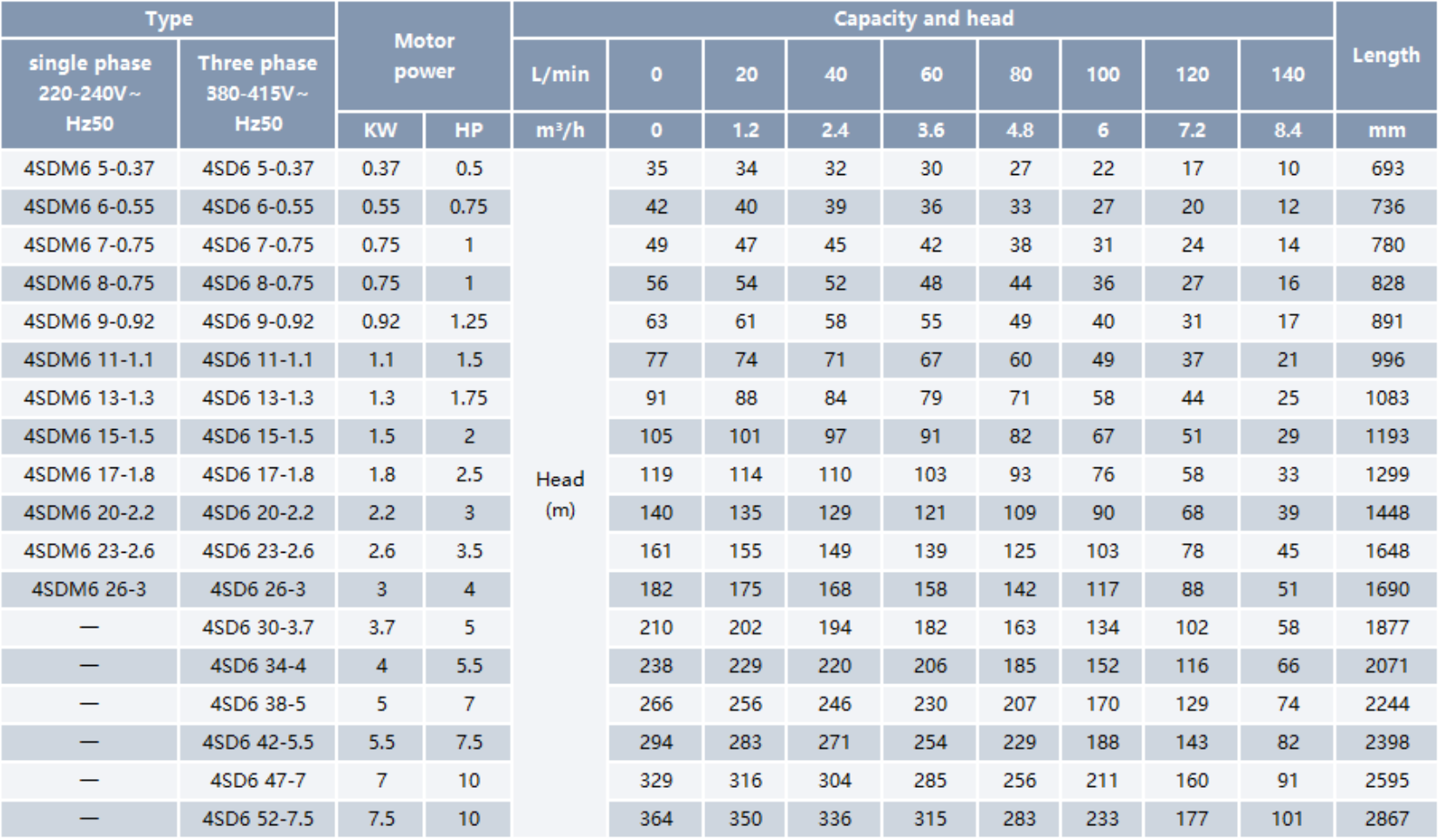

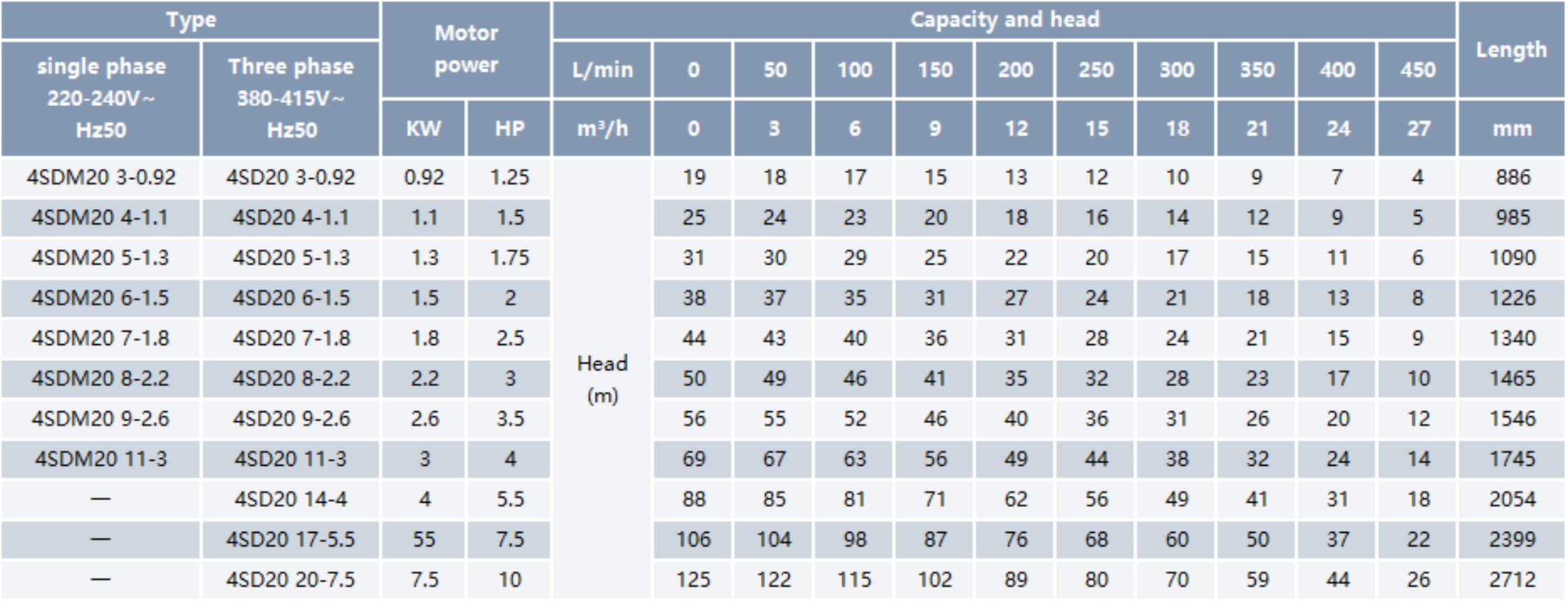

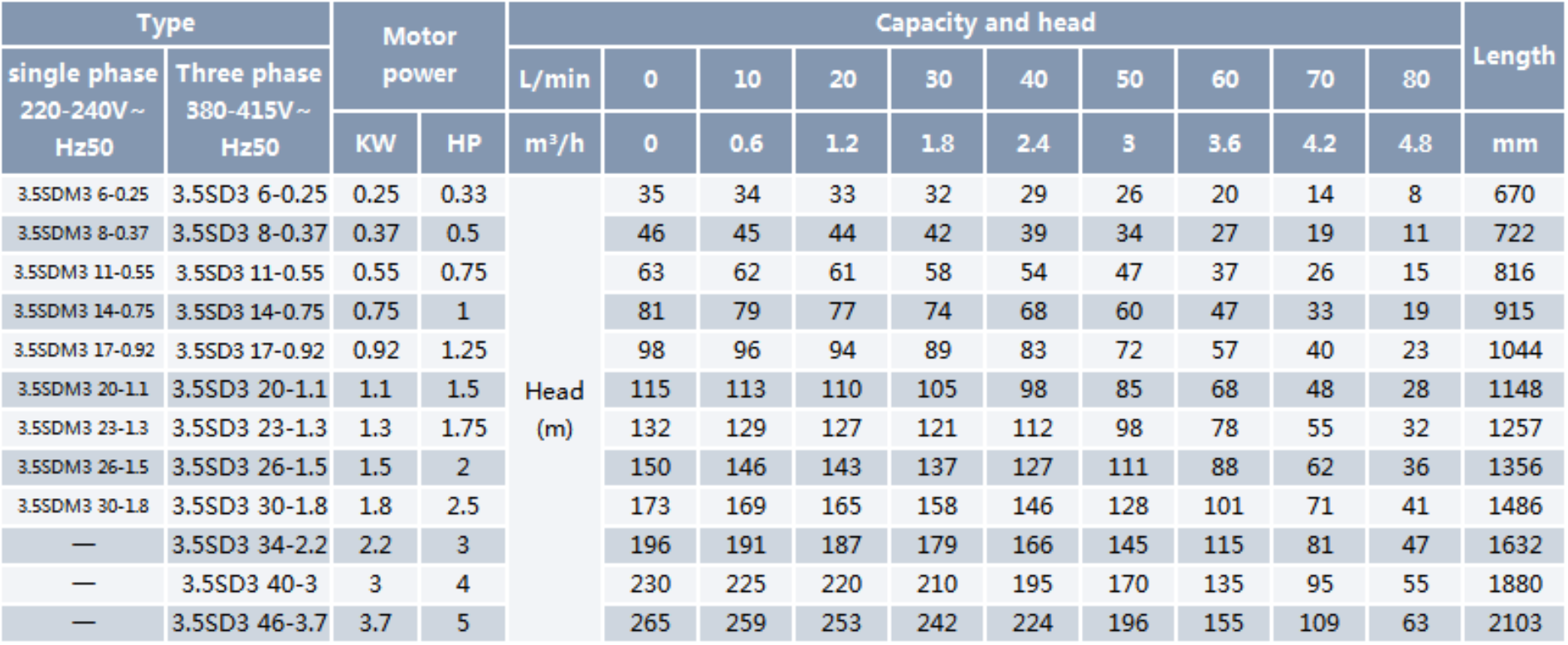

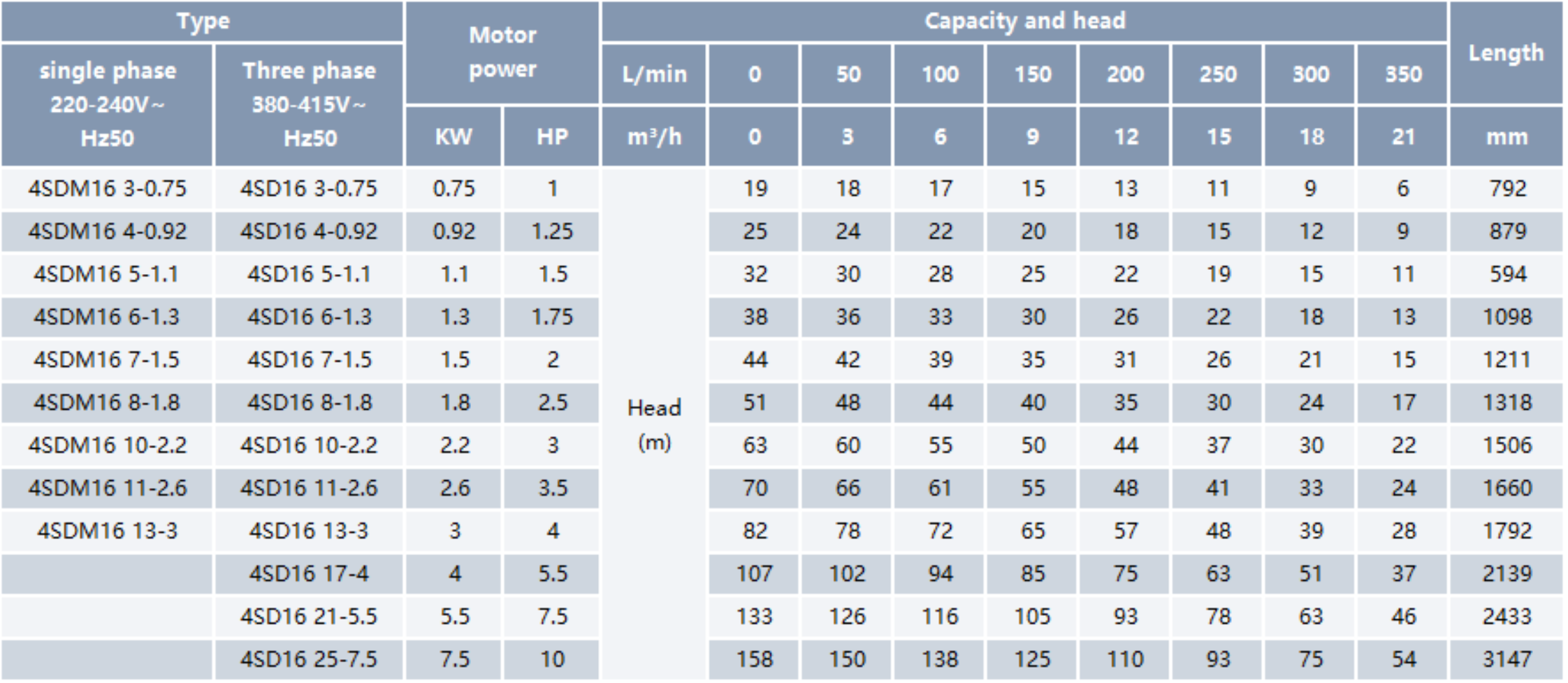

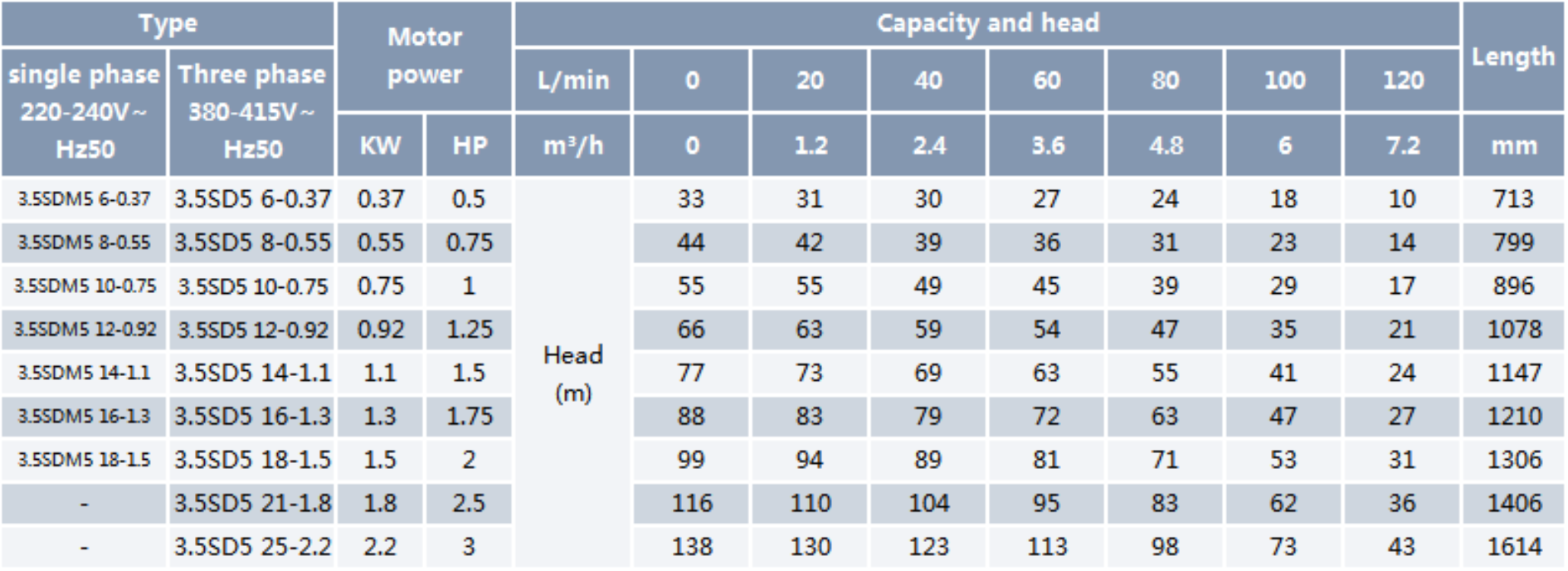

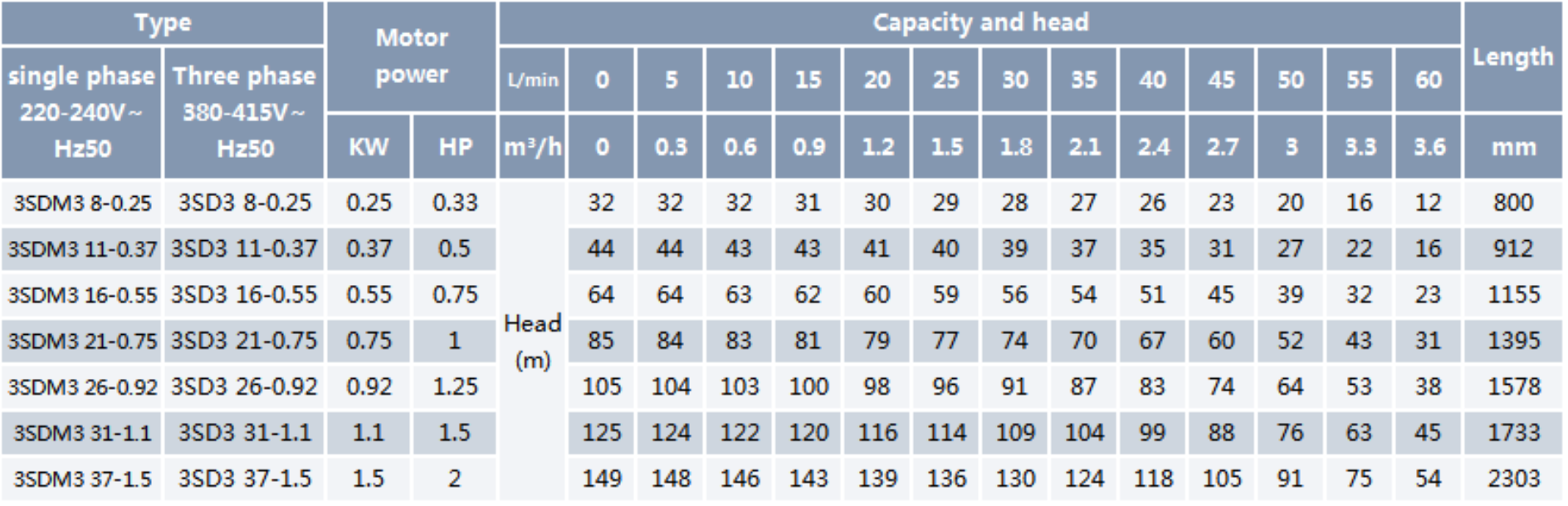

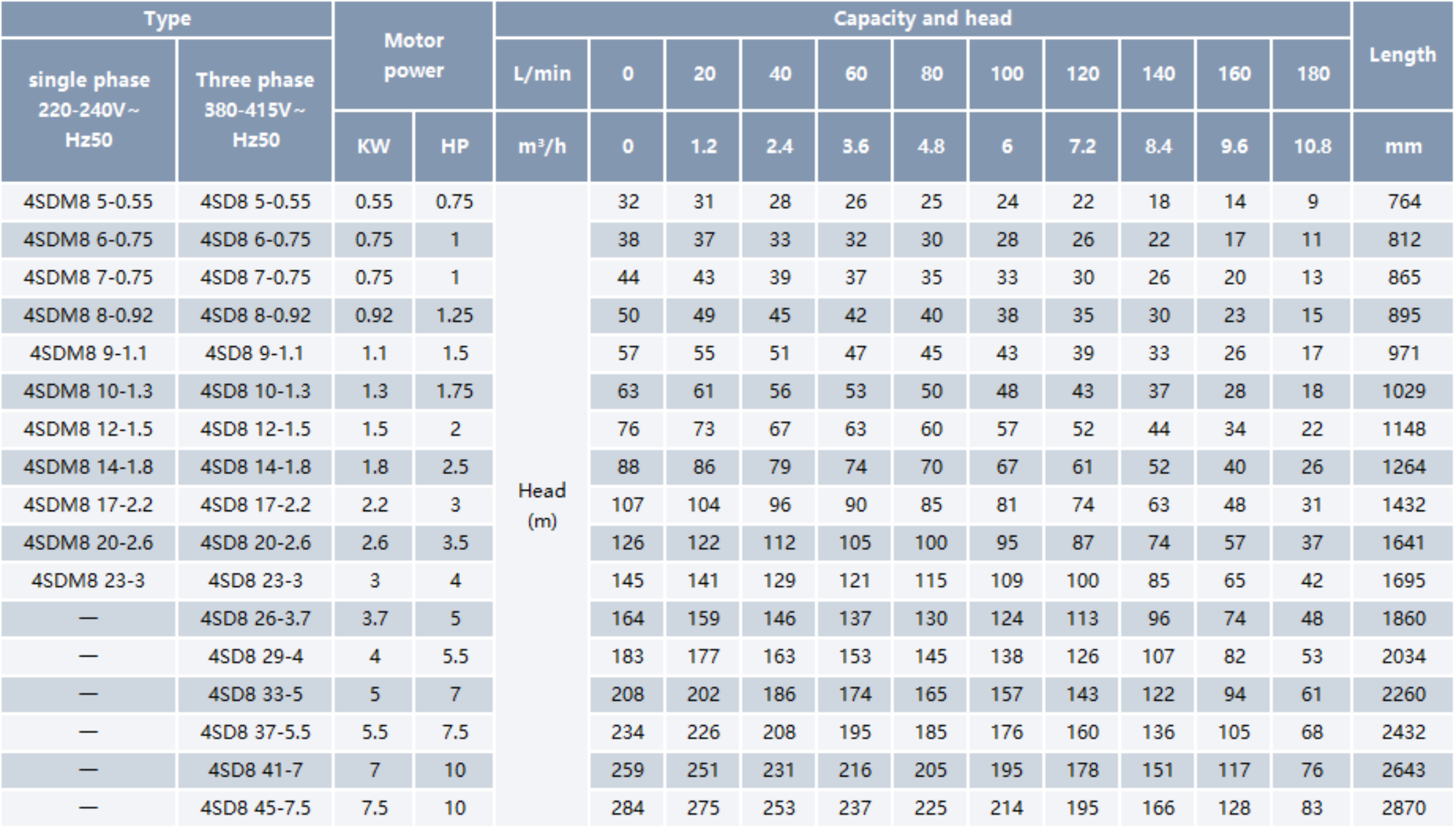

PERFORMANCE TABLE:rpm:2850,Outlet:G1/2"~3/4"
PUMP CURVE

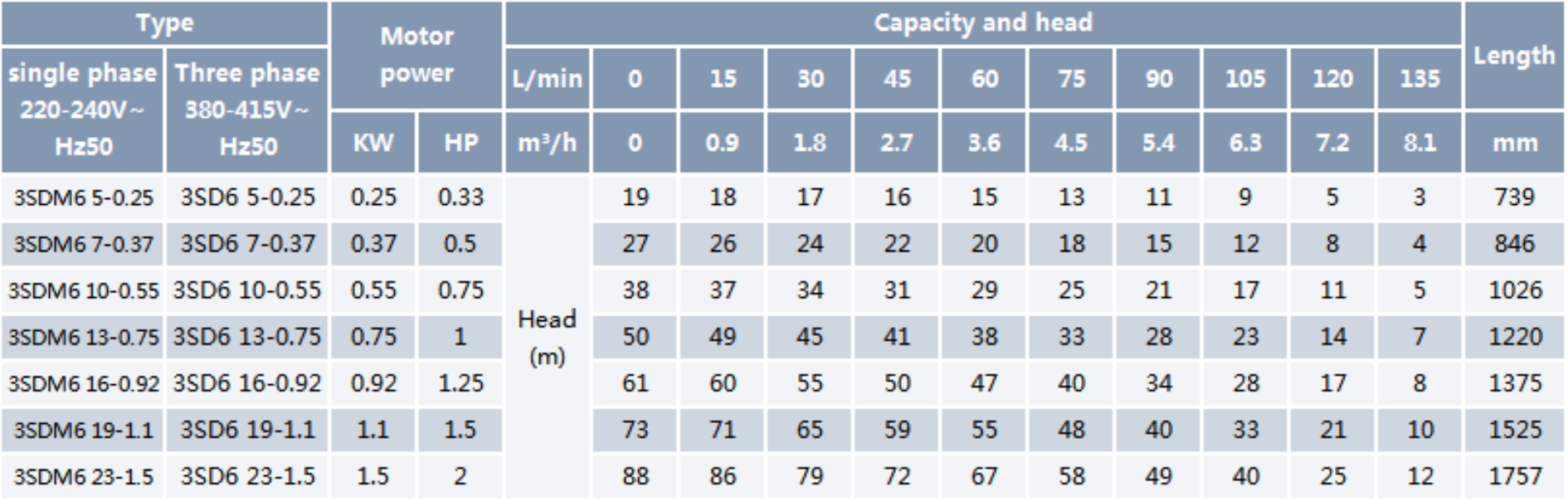

PERFORMANCE TABLE:rpm:2850,Outlet:G1"~1 1/4"
PUMP CURVE
PERFORMANCE TABLE:rpm:2850,Outlet:G1"~1 1/2"
PUMP CURVE
PERFORMANCE TABLE:rpm:2850,Outlet:G1"~1 1/2"
PUMP CURVE
PERFORMANCE TABLE:rpm:2850,Outlet:G1"~11/2"
PUMP CURVE
PERFORMANCE TABLE:rpm:2850,Outlet:G1"~1 1/2"
PUMP CURVE
PERFORMANCE TABLE:rpm:2850,Outlet:G1"~1 1/4"
PUMP CURVE
PERFORMANCE TABLE:rpm:2850,Outlet:G1"~1 1/2"
PUMP CURVE
PERFORMANCE TABLE:rpm:2850,Outlet:G1"~1 1/2"
PUMP CURVE
PERFORMANCE TABLE:rpm:2850,Outlet:G1"~1 1/2"
PUMP CURVE
PERFORMANCE TABLE:rpm:2850,Outlet:G1"~1 1/4"
PUMP CURVE
PERFORMANCE TABLE:rpm:2850,Outlet:G1"~1 1/2"
PUMP CURVE
PERFORMANCE TABLE:rpm:2850,Outlet:G1"~1 1/2"
PUMP CURVE
PERFORMANCE TABLE:rpm:2850,Outlet:G1 1/4"~2"
PUMP CURVE
PERFORMANCE TABLE:rpm:2850,Outlet:G2"~2 1/2"
PUMP CURVE
PERFORMANCE TABLE:rpm:2850,Outlet:G2"~2 1/2"
PUMP CURVE
PERFORMANCE TABLE:rpm:2850,Outlet:G2"~2 1/2"
PUMP CURVE
PERFORMANCE TABLE:rpm:2850,Outlet:G2"~2 1/2"
PUMP CURVE
PERFORMANCE TABLE:rpm:2850,Outlet:G2"~3"
