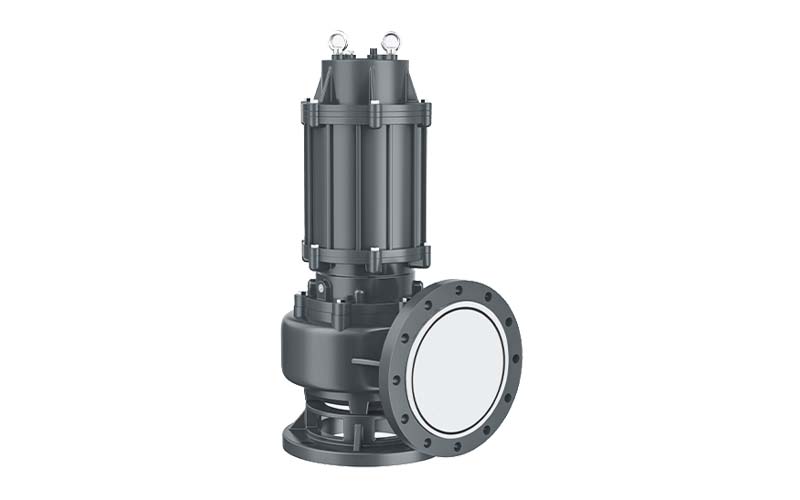

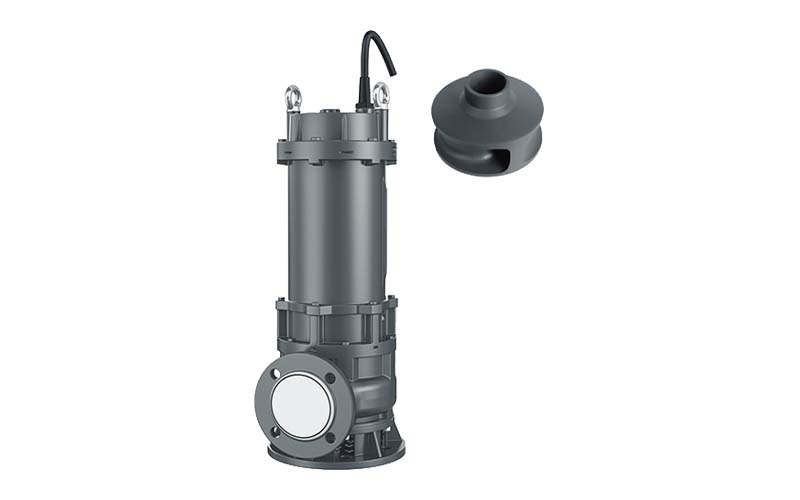

Sewage Pump WQ

  • Heavy-Duty Solids Handling: Engineered for demanding wastewater, capable of passing suspended solids up to ø35mm, ideal for clearing dirty water and discharging domestic sewage.
  • Robust & Durable Construction: Features a heavy-gauge HT250 cast iron pump casing for superior abrasion resistance and long-lasting performance in harsh conditions.
  • Efficient & Fully Protected Motor: Powered by a YE3 high-efficiency motor with IP68 protection and Class F insulation, ensuring reliable, continuous (S1 duty) operation when submerged up to 5m.
  • Versatile & Non-Clogging Design: Offers both single-phase (220V) and three-phase (380V) power options (50/60Hz). The two-vane impeller provides large, non-clogging fluid channels for consistent flow.
  • Description

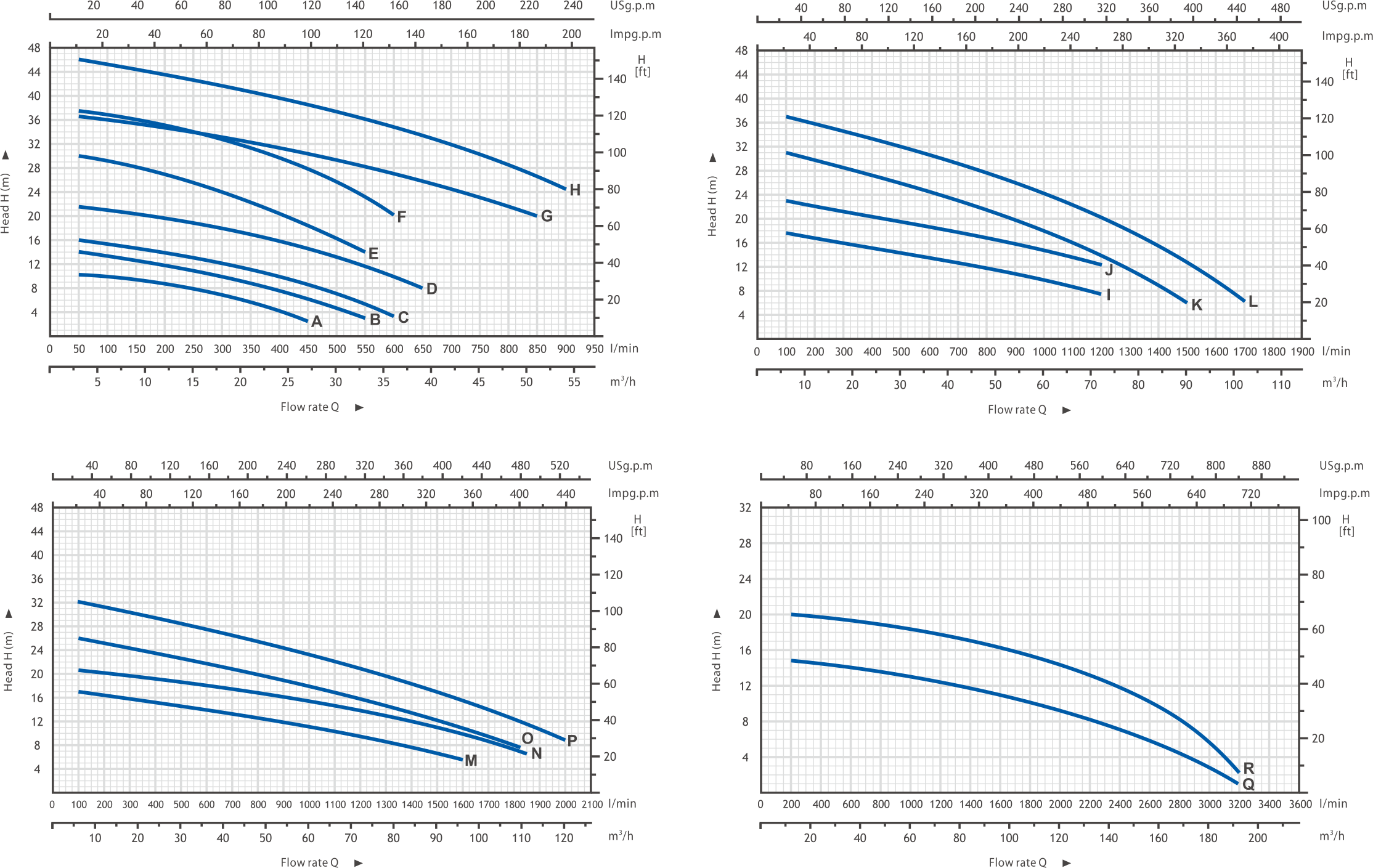

PERFORMANCE CHART AT n=2850RPM


Sewage Pump WQ

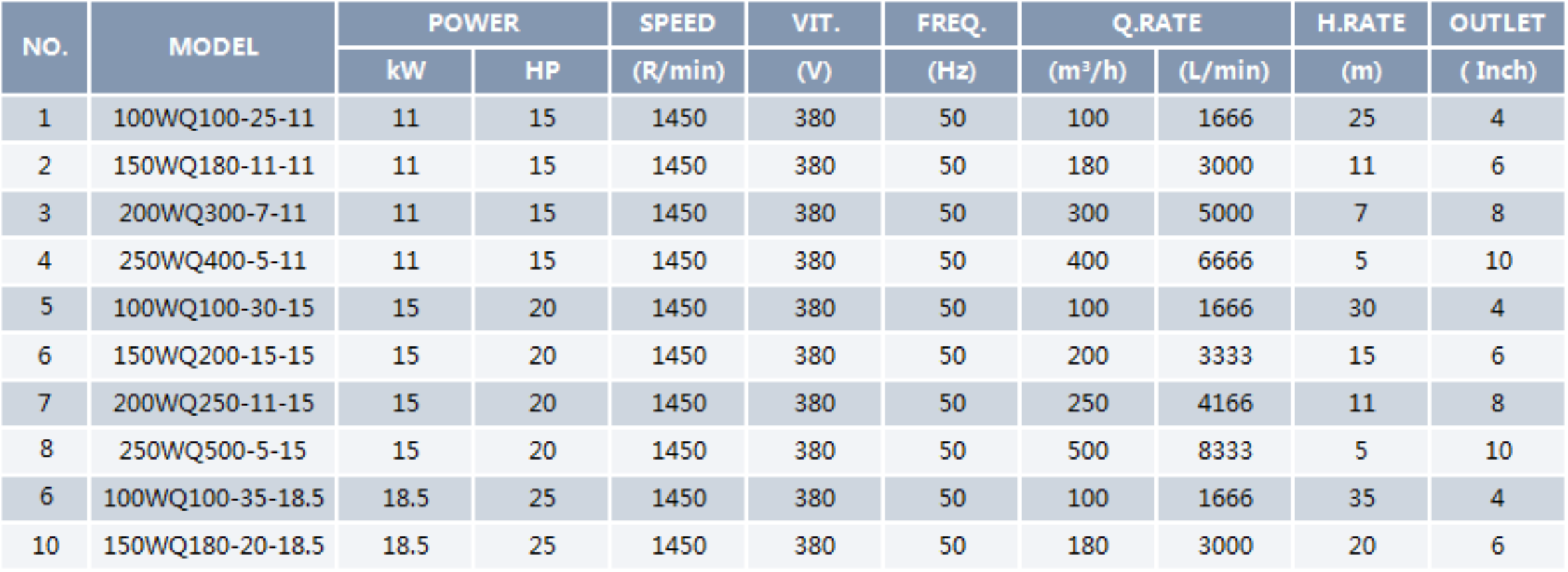

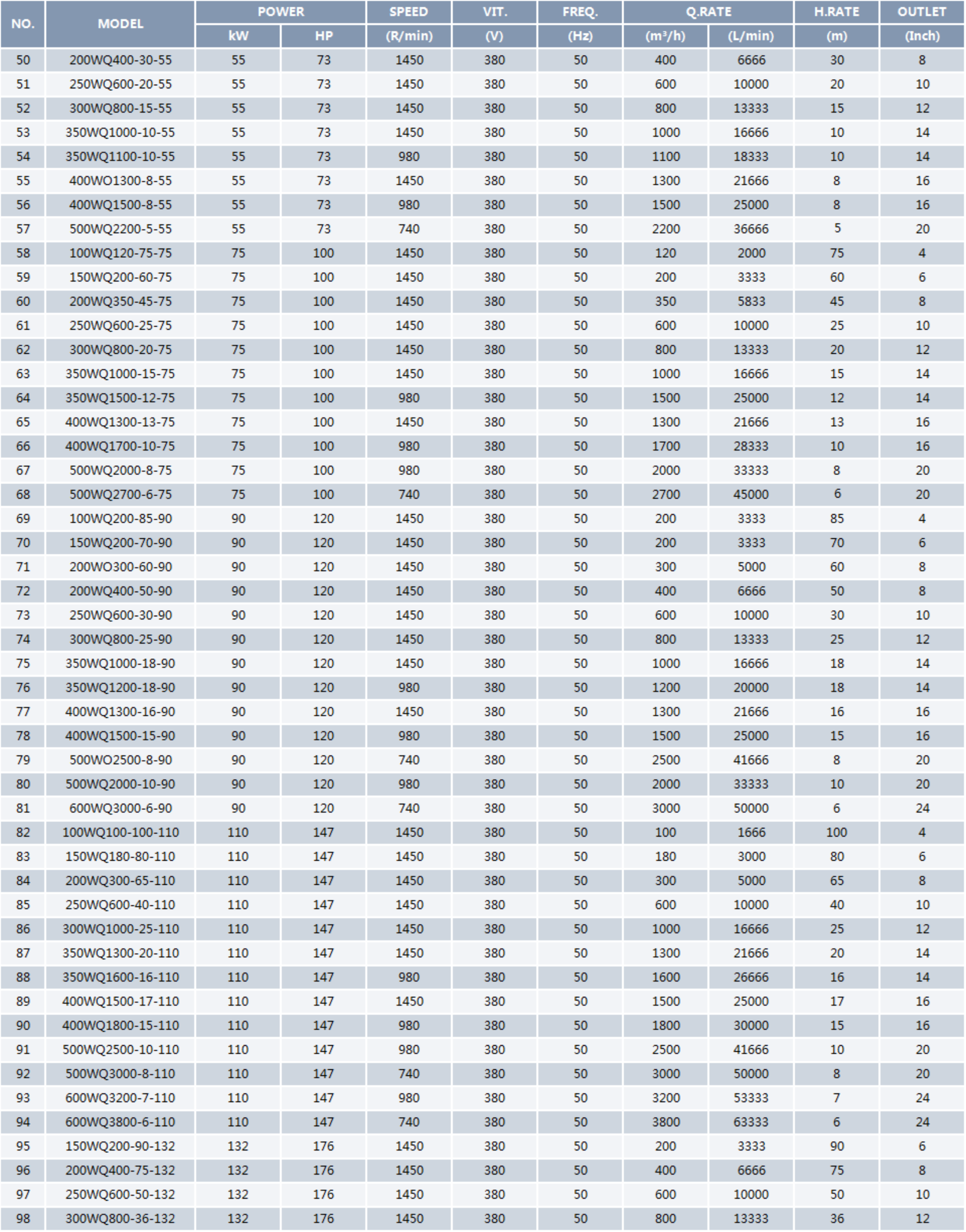

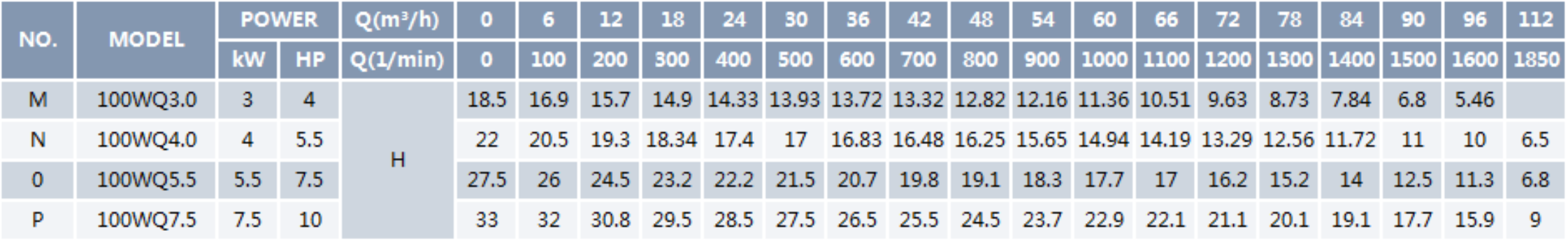

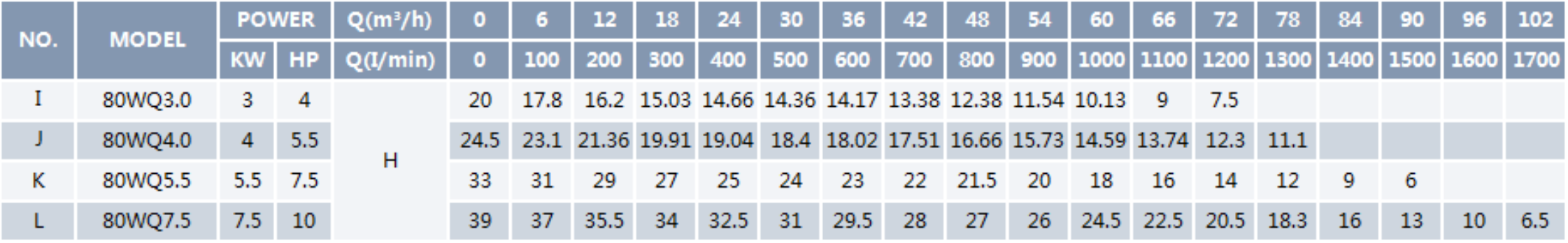

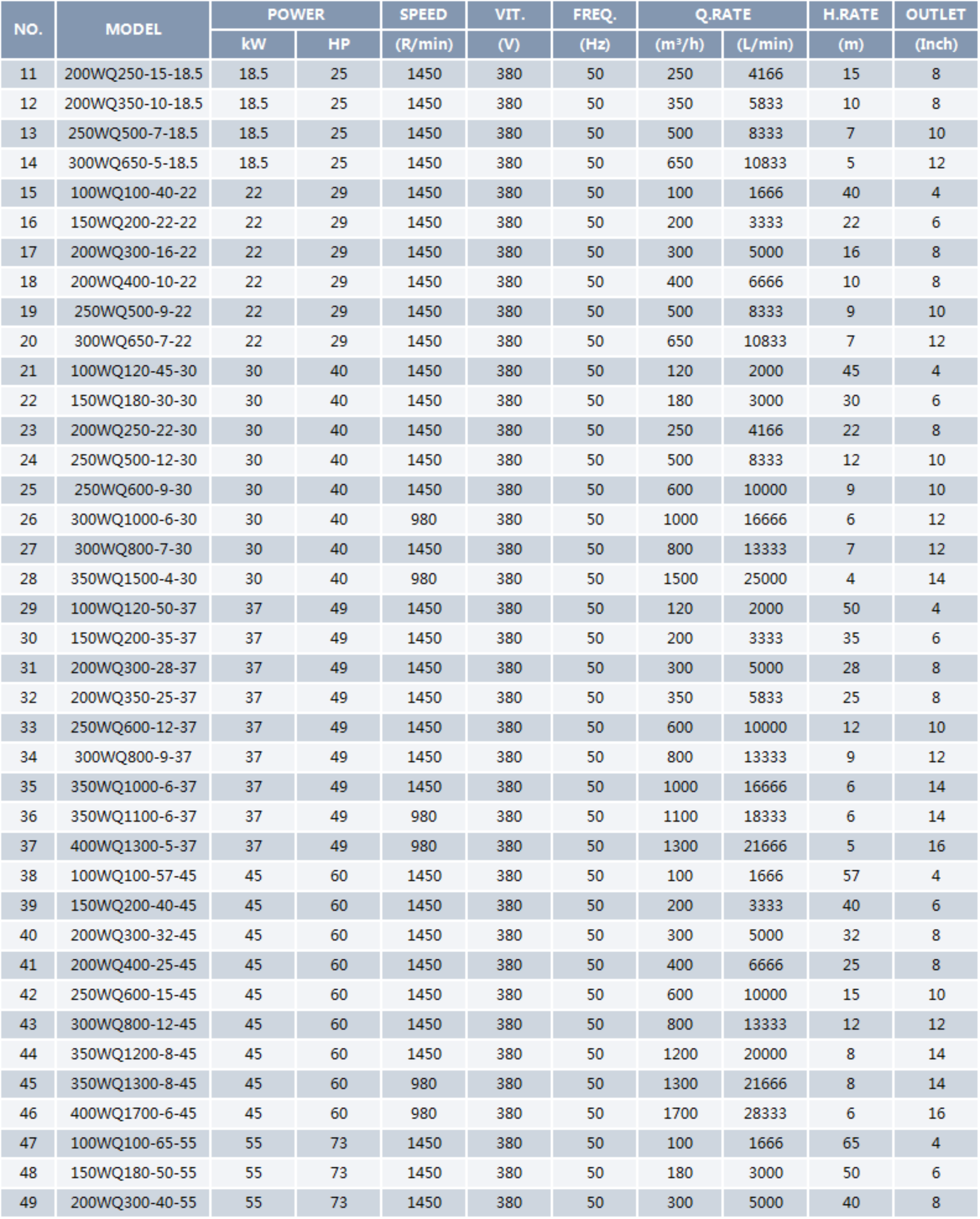

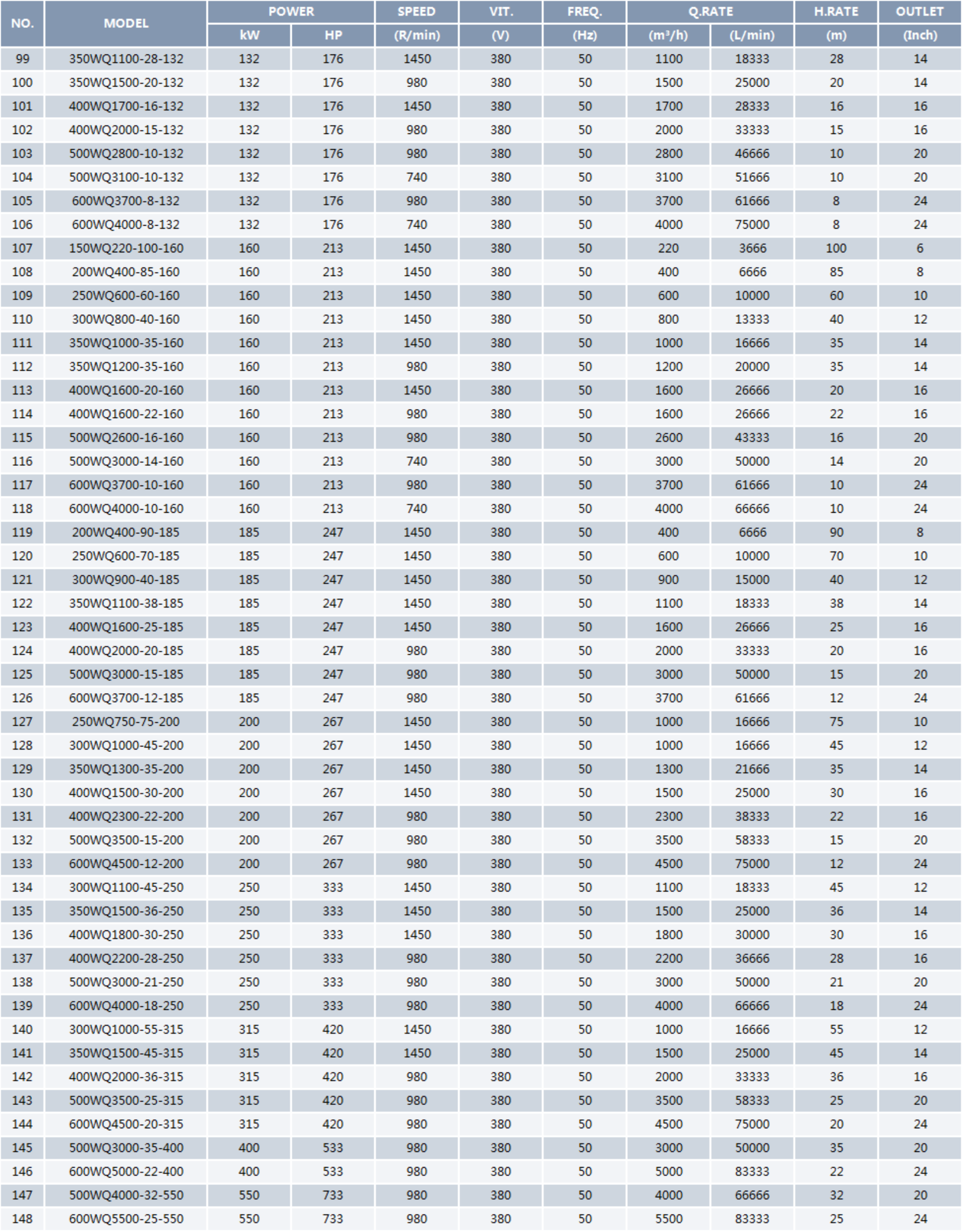

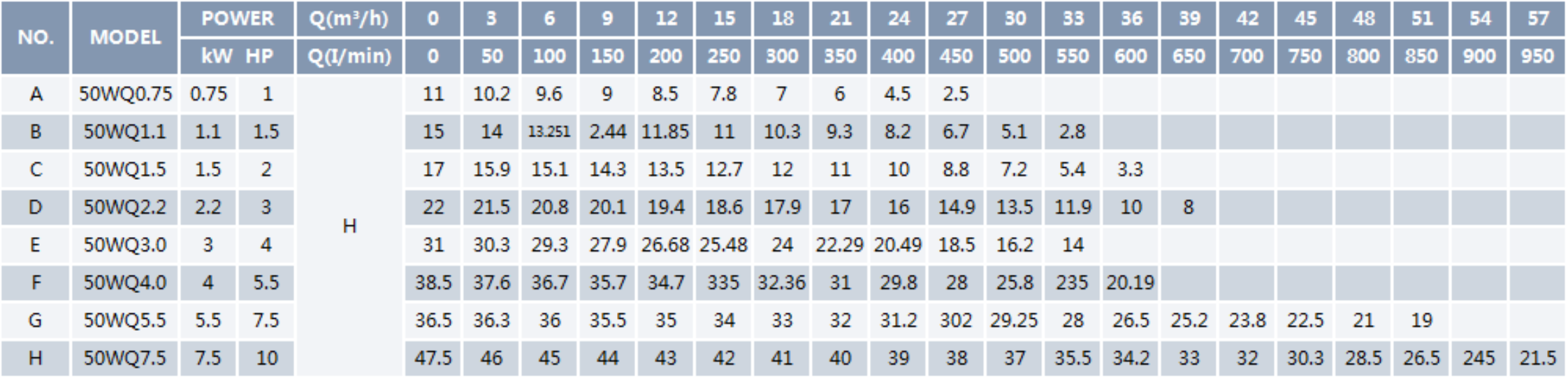

PERFORMANCE TABLE


Sewage Pump WQ

Sewage Pump WQ

Sewage Pump WQ

Sewage Pump WQ

Sewage Pump WQ

Sewage Pump WQ

Sewage Pump WQ
