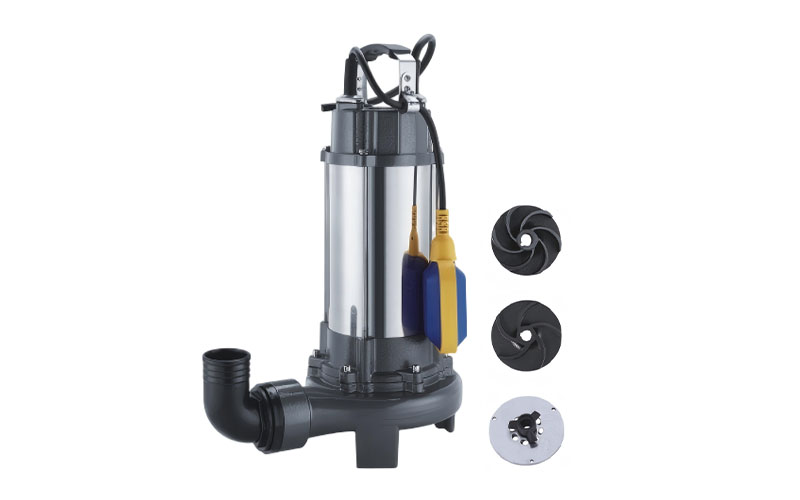

Sewage Pump VD

Professional Complex Fluid Handling: Capable of reliably transferring a wide range of media with a pH value of 4-10, and compatible with special industrial fluids having a kinematic viscosity of 7x10⁻⁷ ~ 23x10⁻⁶ m²/s and a maximum density of 1.2x10³ kg/m³, meeting demanding process requirements.
Robust Fully-Submersible Design: Features a stainless steel welded motor shaft and a full IP68 protection rating, ensuring stable, long-term operation at immersion depths up to 5m with strong resistance to corrosion and mechanical stress.
High-Reliability Motor & Thermal Management: Equipped with an all-copper winding motor, Class B insulation, and a built-in thermal protector, guaranteeing efficient, safe, and continuous operation at maximum liquid temperatures of +40°C.

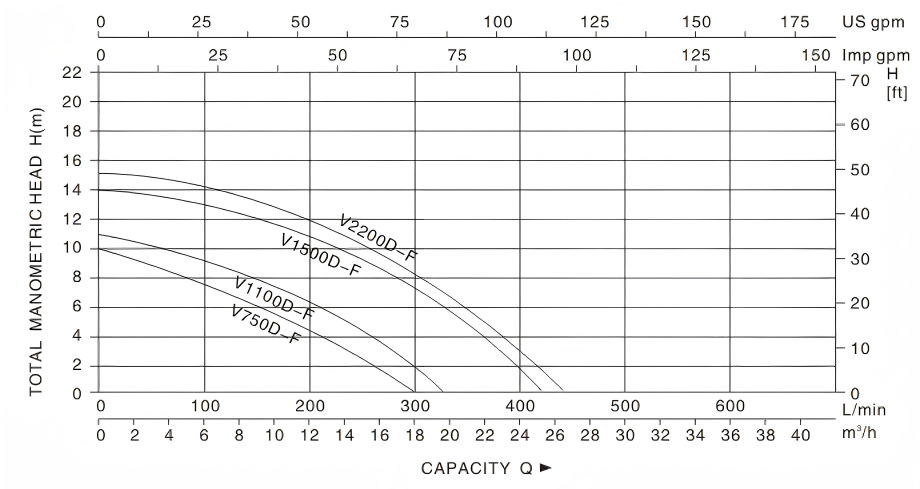

PUMP CURVE

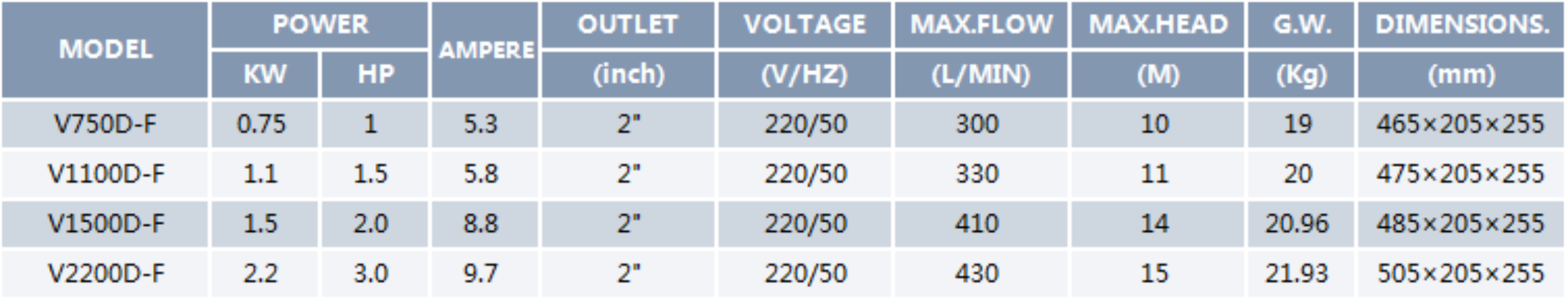

PERFORMANCE TABLE

Sewage Pump VD
