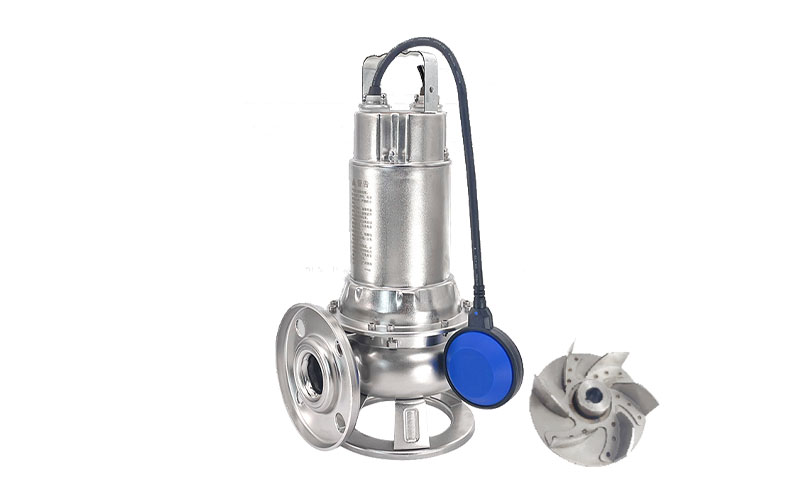

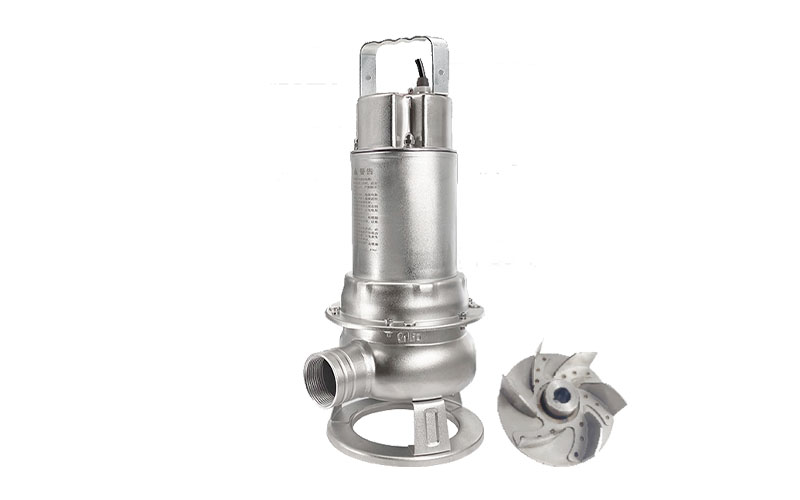

Sewage Pump QWK

Superior Non-Clogging & Solids Handling: Features an open impeller that passes soft solids up to 30mm in diameter and two-vane, non-clogging design with large fluid channels for reliable operation in sewage and wastewater.
Durable, Corrosion-Resistant Construction: Pump casing is made of anti-corrosive SS304 or SS316 stainless steel for abrasion resistance and long life in harsh environments.
High-Efficiency & Fully Protected Motor: Equipped with a YE3 high-efficiency motor (copper winding), IP68 and Class F protection, and a USA Tyco thermal protector (single-phase) for reliable, energy-saving submersion up to 5m depth.
Convenient Installation & Control: Offers an optional float switch for automatic level control, a 10-meter power cable, and is available with an auto-coupling system for easy installation and maintenance.

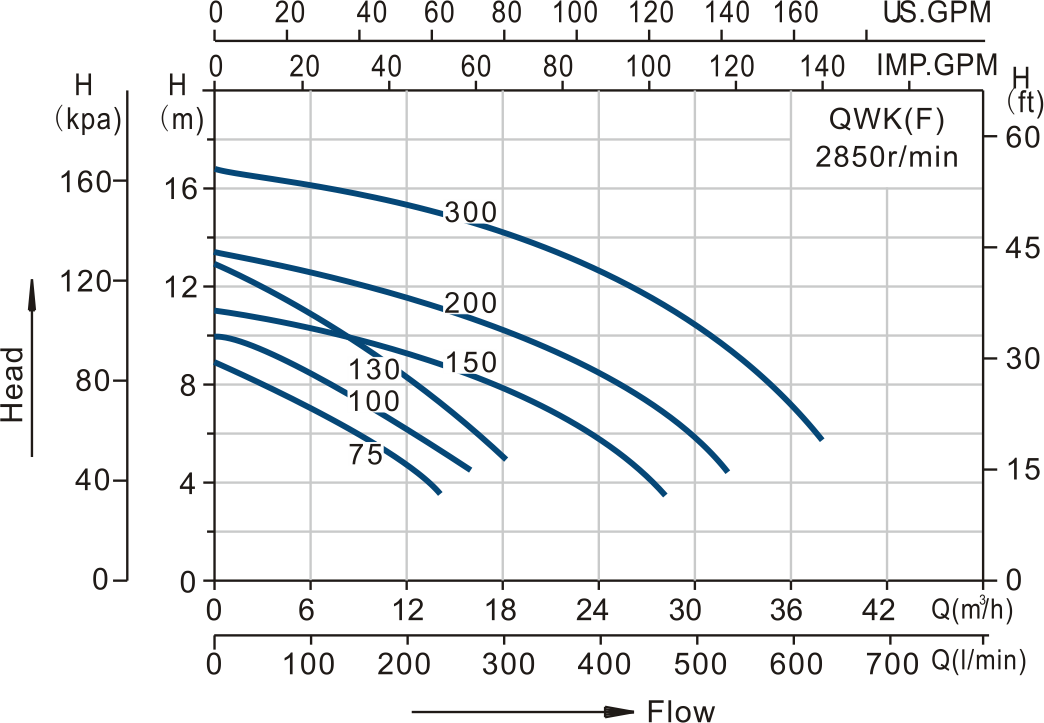

PUMP CURVE

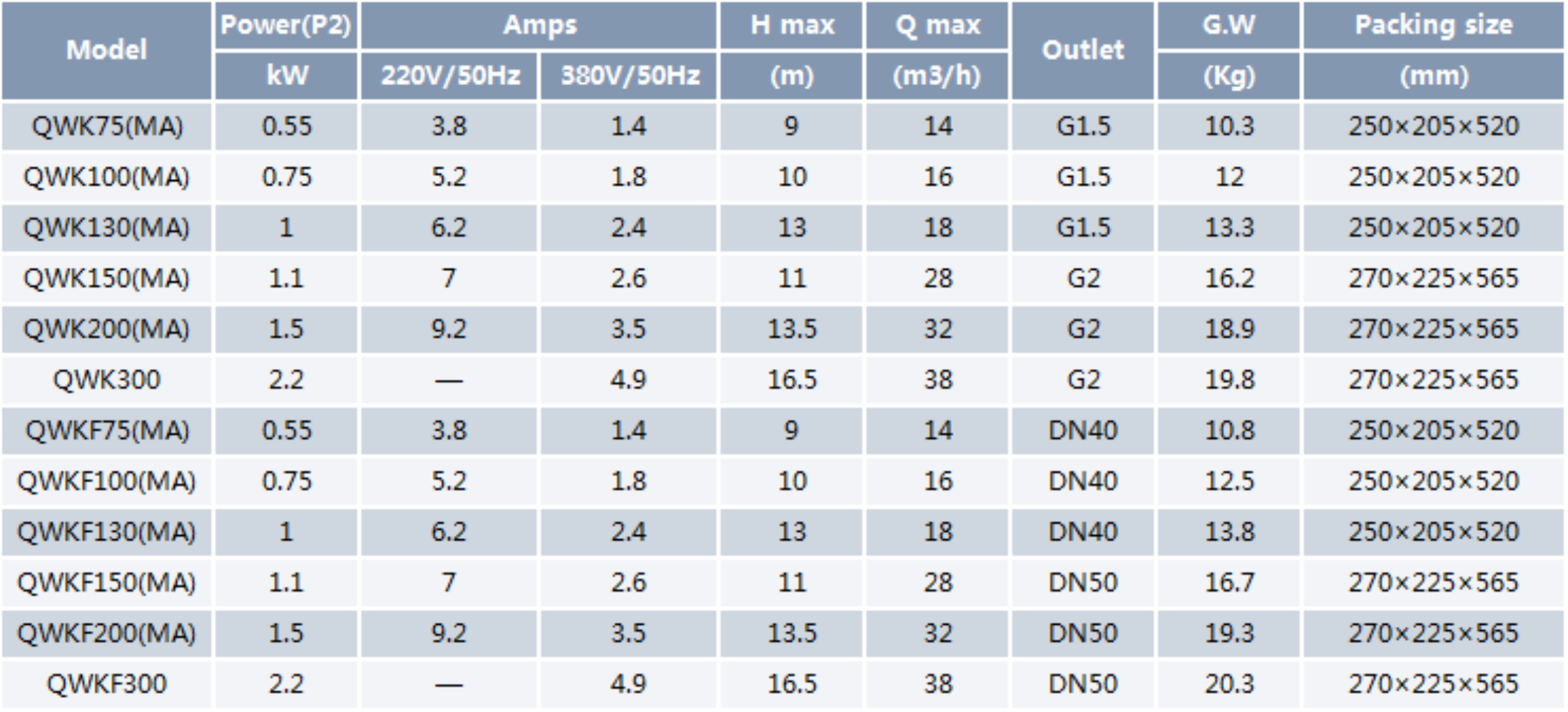

PERFORMANCE TABLE
