HIDRO AQUA PUMP INDUSTRY CO.,LTD.

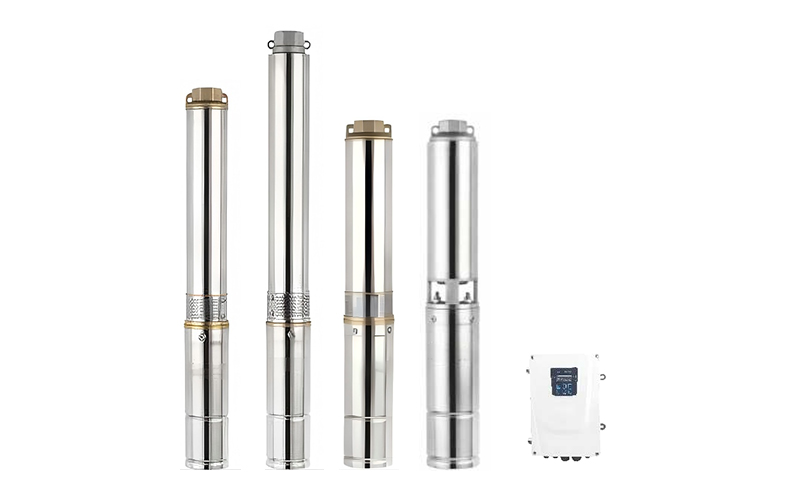

Solar Deep Well Pump SDC-A/D(80-400V)

  • Efficient solar brushless borehole pump with a durable plastic impeller, paired with a high-efficiency permanent magnet motor for 15-30% improved performance.
  • Wide voltage compatibility supports 80V-400V DC and 110V-220V AC, offering exceptional flexibility for various on-grid and off-grid installations worldwide.
  • Eco-friendly operation powered by solar panels, with the reliable backup option of a battery for continuous, uninterrupted water supply.
  • Comprehensive electrical protection system includes overload, underload, lock-rotor, and thermal safeguards for enhanced durability and safe operation.
  • An ideal, cost-effective sustainable solution for domestic water supply, agricultural irrigation, and remote off-grid applications.
  • Description

3SDC-A/D(80-400V)

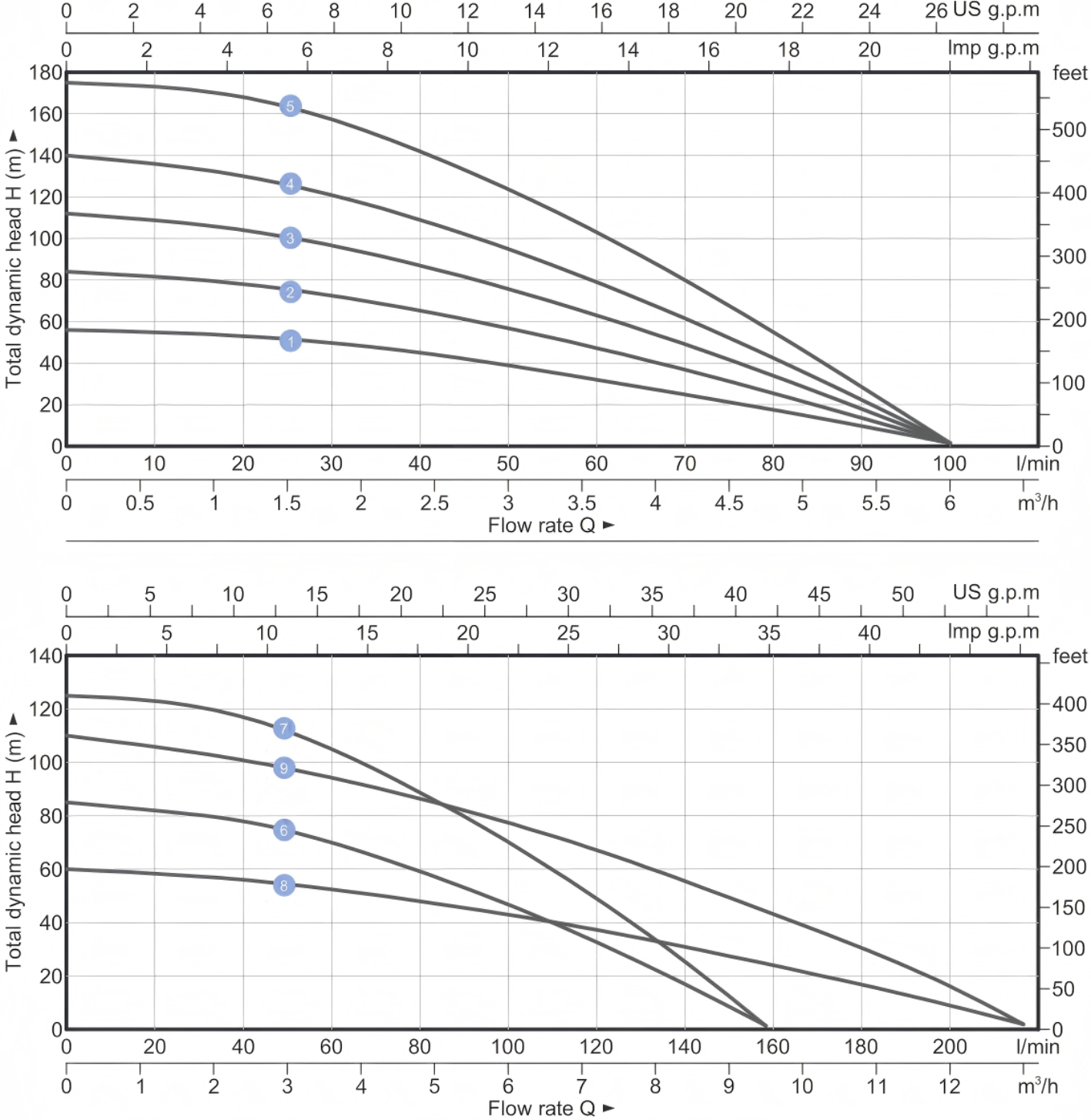

PUMP CURVE


Solar Deep Well Pump SDC-A/D(80-400V)

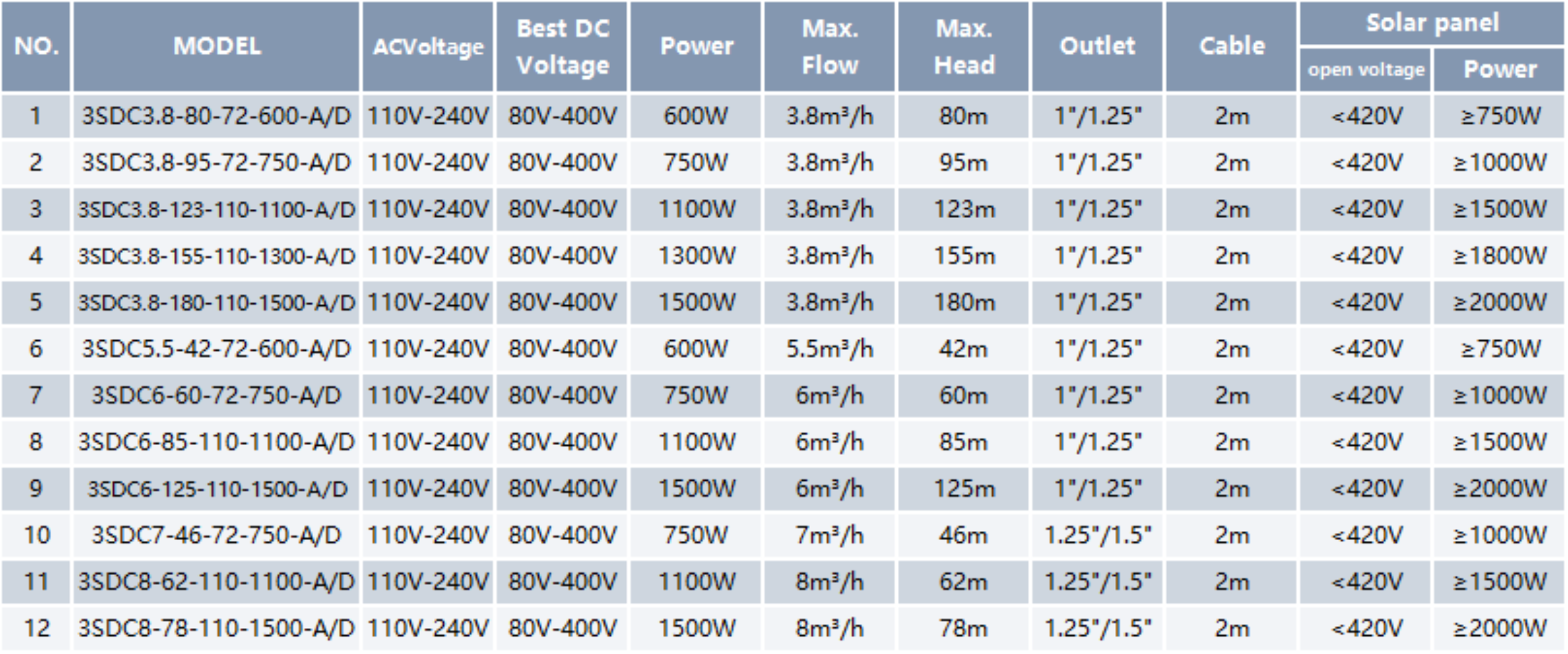

PERFORMANCE TABLE


Solar Deep Well Pump SDC-A/D(80-400V)


4SDC-A/D(80-400V)

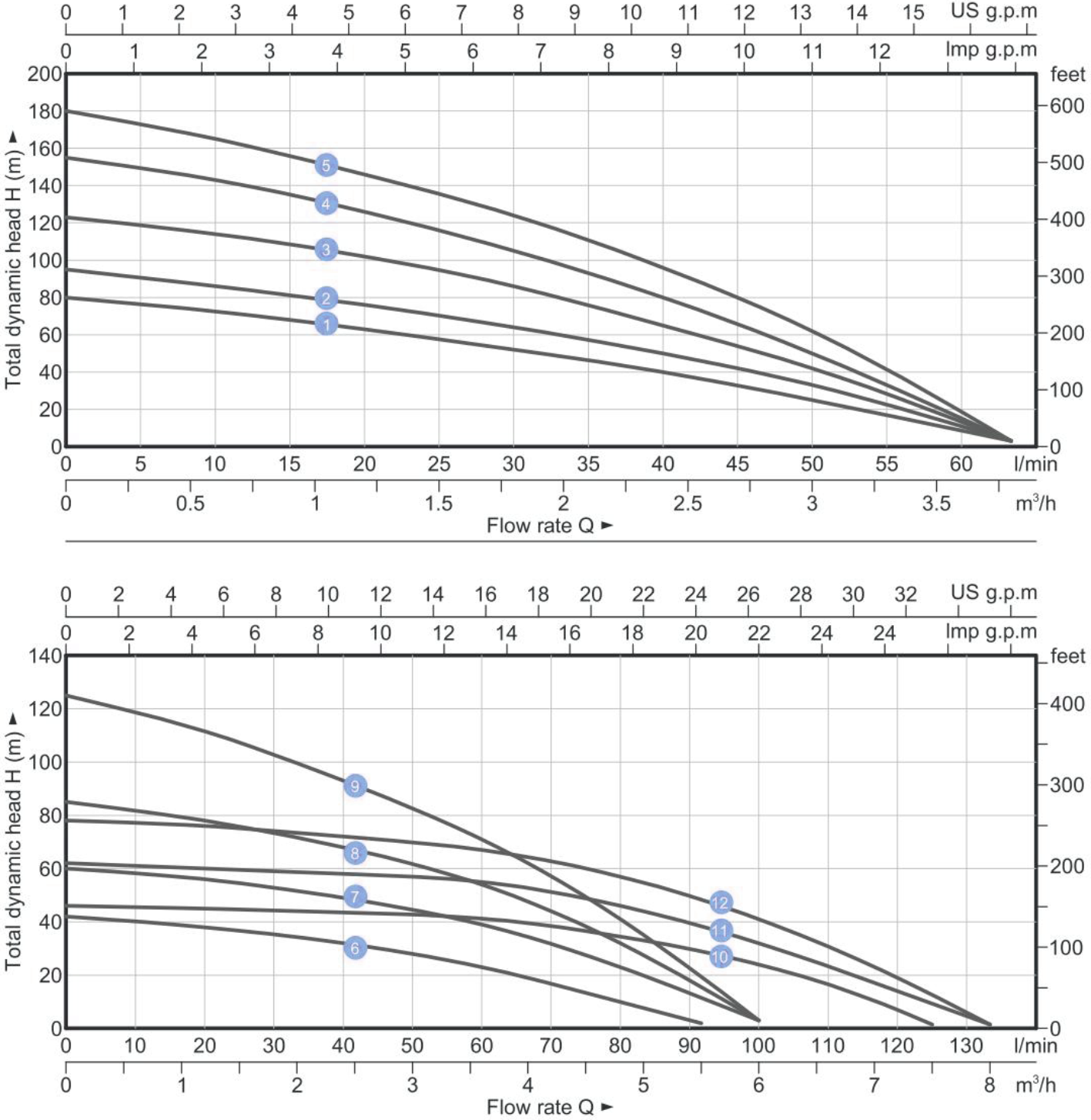

PUMP CURVE


Solar Deep Well Pump SDC-A/D(80-400V)

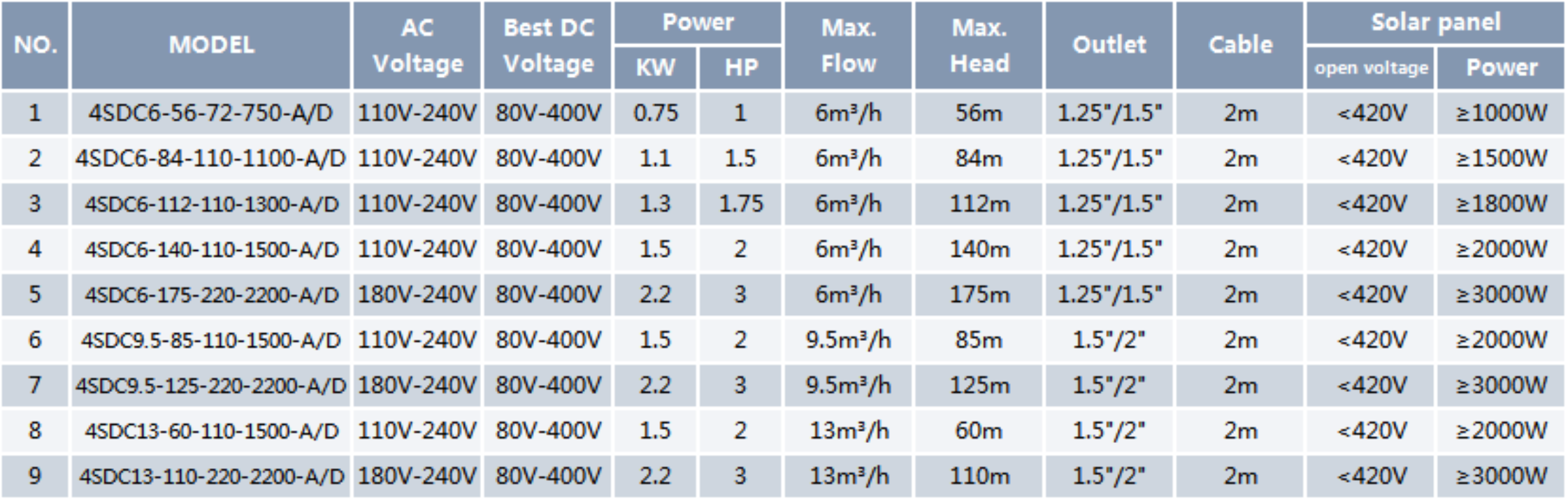

PERFORMANCE TABLE


Solar Deep Well Pump SDC-A/D(80-400V)
