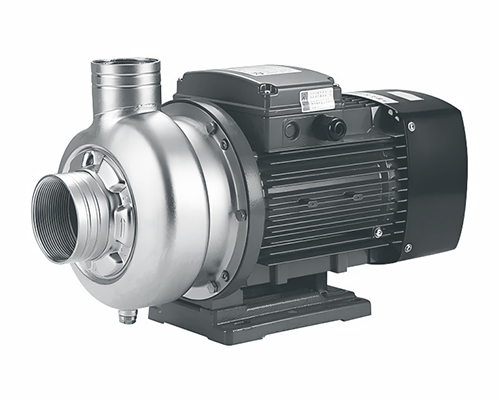

Centrifugal Pump DWK

Full SS304 Construction: Open impeller and all wetted parts made of SS304 stainless steel for excellent corrosion resistance.
High-Efficiency & Quiet Operation: Features a YE3 high-efficiency motor (IP55, Class F) for energy-saving and low-noise performance.
Compact & Durable Design: Space-saving footprint with wear-resistant mechanical seal and quality bearings for reliable, low-maintenance use.
Wide Temperature Range: Standard model handles -20°C to +70℃; high-temperature version up to +104℃, with max working pressure of 0.3MPa.

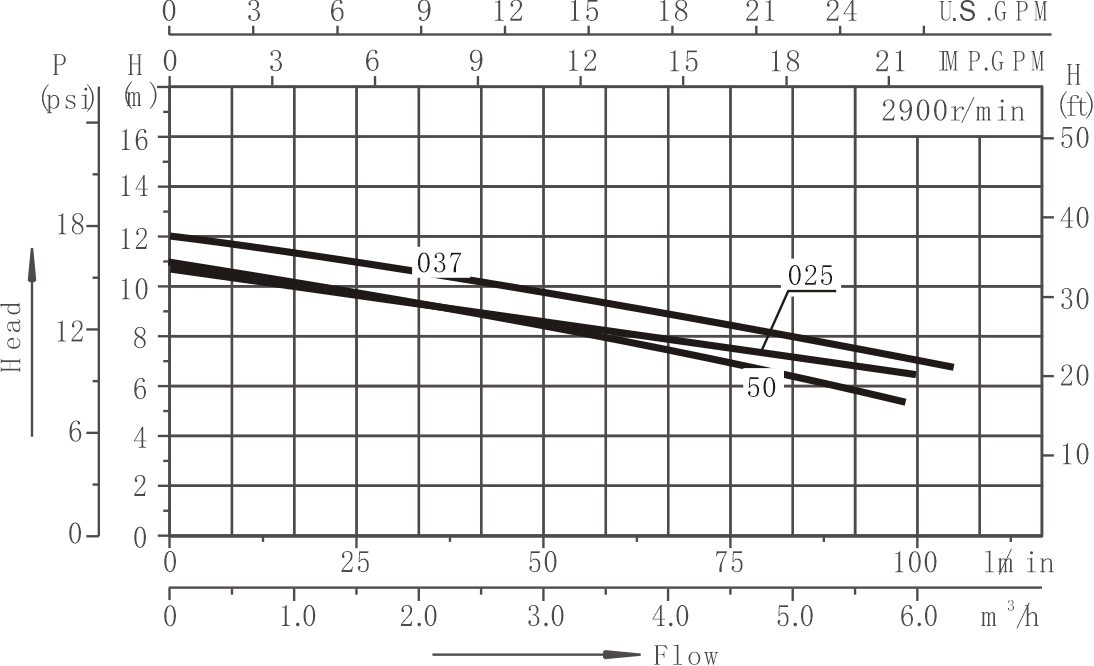

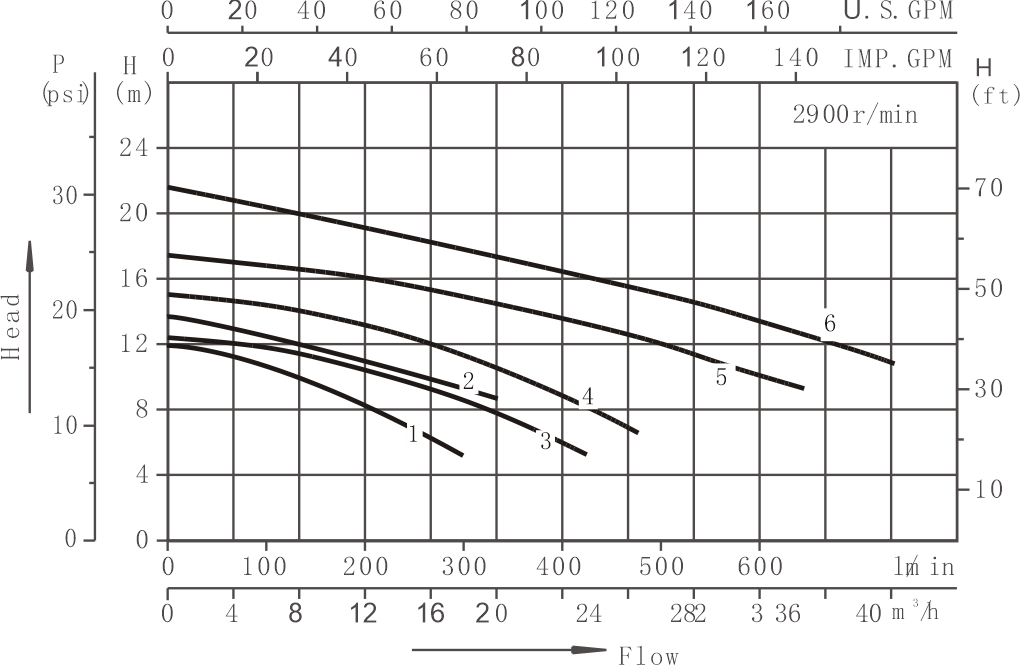

PUMP CURVE

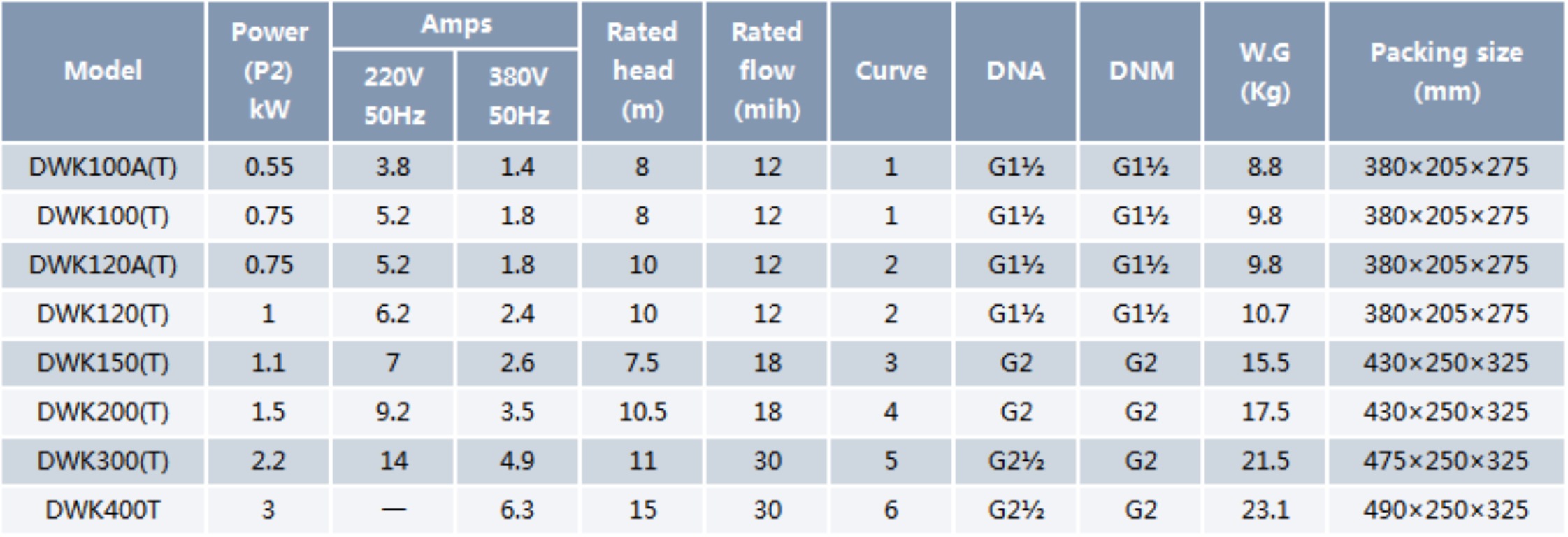

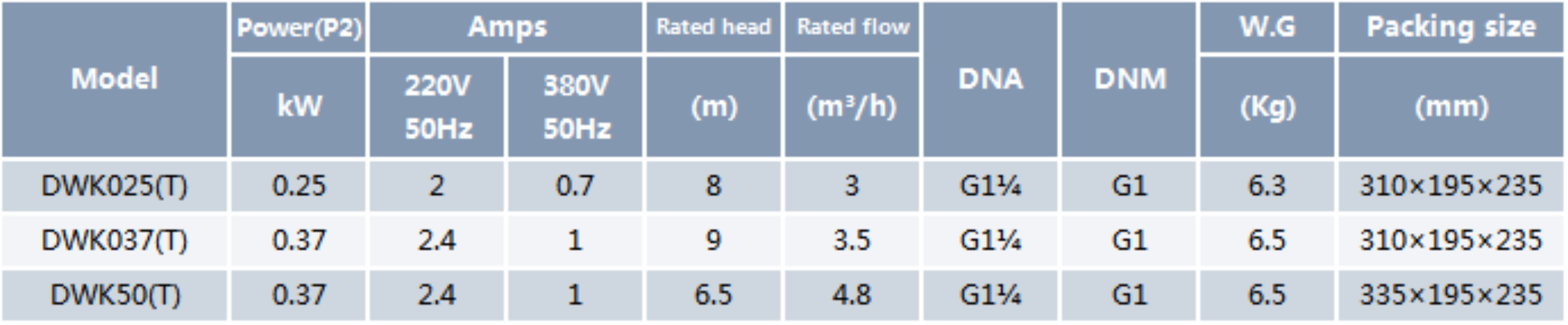

PERFORMANCE TABLE
